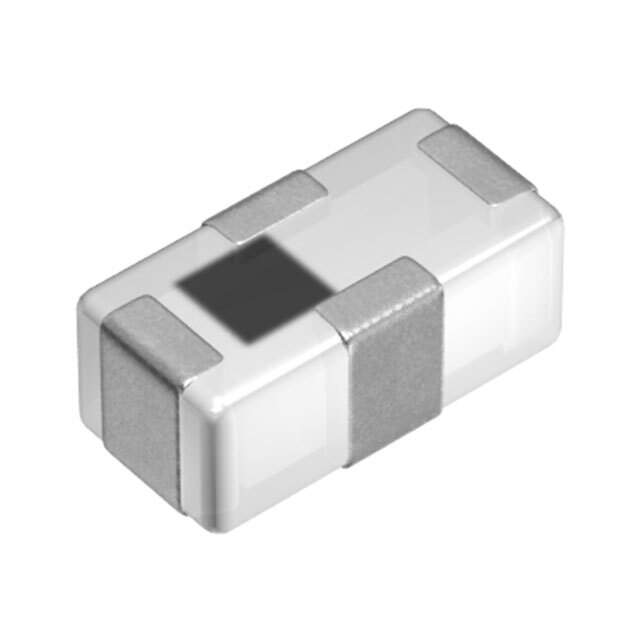

HHM1944A1 Real Image
Same model may have multiple batches, images only for reference.

HHM1944A1

Part No HHM1944A1
Manufacturer TDK Corporation
Catalog Balun
Description MULTILAYER BALUN FOR 758 - 821MH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel
Frequency Range 758MHz ~ 821MHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 181°
Insertion Loss (Maximum) 0.85dB
Return Loss (Minimum) 20dB
Manufacturer Package 0402 (1005 Metric), 4 PC Pad
Mounting Style SMT
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 723823-HHM1944A1
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HHM1944A1 CAD Model

Description

The TDK Corporation has produced the HHM1944A1, an RF/IF and RFID component that offers a frequency range of 758MHz ~ 821MHz.

  • Component Type: RF/IF and RFID
  • Frequency Range: 758MHz ~ 821MHz
  • Return Loss (Minimum): 20dB
  • Insertion Loss (Maximum): 0.85dB
  • Manufacturer Package: 0402 (1005 Metric), 4 PC Pad
  • Win Source Part Number: 723823
  • Supply and Demand Status: Sufficient
