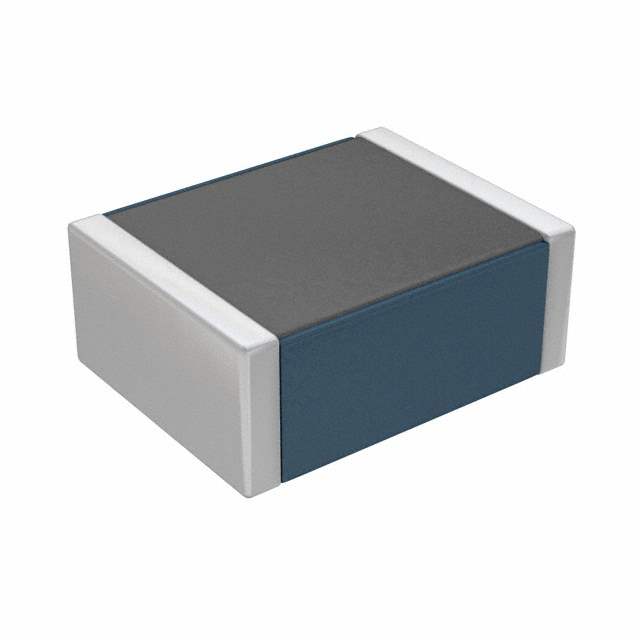

HF70ACC322513-T Real Image
Same model may have multiple batches, images only for reference.

HF70ACC322513-T

Part No HF70ACC322513-T
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 52 OHM 1210 1LN
Datasheet
HF70ACC322513-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 52 Ohm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 50 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.059" (1.50mm)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Win Source Part Number 016944-HF70ACC322513-T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HF70ACC322513-T CAD Model

Description

The TDK Corporation 016944-HF70ACC322513-T is a signal line filter.

  • Impedance: 52 Ohm @ 100MHz
  • Current Rating: 1.5A
  • Mounting: SMD (SMT) technology
  • Height: 0.059" (1.50mm)
  • Packaging: Reel - TR
  • DC Resistance (DCR): 50 mOhm
  • Use: Commonly used in electronic devices that require filtering
