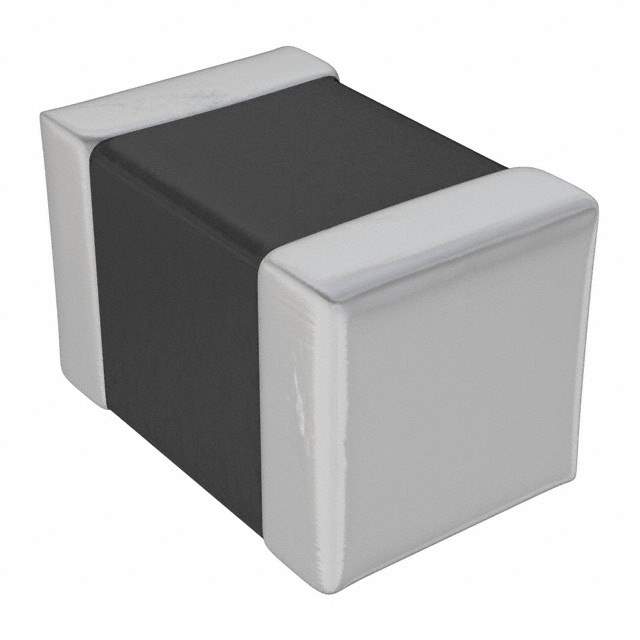

The GLCR2012T101M-HC is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various purposes, including decoupling, bypassing, filtering, and smoothing. This specific capacitor is a surface-mount device (SMD) designed for automated assembly on printed circuit boards (PCBs). The '101M' in the part number indicates its capacitance value and tolerance.

Applications

• Decoupling capacitors in power supplies
• Bypass capacitors in digital circuits
• Filtering capacitors in analog circuits
• Smoothing capacitors in voltage regulators
• General-purpose capacitor applications

Features

• Multilayer Ceramic Capacitor (MLCC)
• Surface Mount Device (SMD)
• Case Size: 0805 (EIA 2012) [Metric: 2.0mm x 1.2mm]
• Capacitance: 100pF (101)
• Capacitance Tolerance: ±20% (M)
• Voltage Rating: Typically 50V or 100V (depending on the specific datasheet)
• Temperature Coefficient: CH (High Capacitance Stability)
• RoHS Compliant

Benefits

• Provides reliable capacitance for circuit functionality
• Small size for high-density circuit designs
• Suitable for automated assembly processes
• RoHS compliant, contributing to environmentally friendly designs
• Stable performance in various environmental conditions

Additional Details

The GLCR2012T101M-HC capacitor is designed for surface-mount applications, making it suitable for automated assembly lines. The EIA 0805 case size (metric 2012) provides a compact footprint on the PCB. The capacitance value is 100pF, with a tolerance of ±20%. The temperature coefficient is CH, which signifies a high degree of capacitance stability over a range of temperatures. The voltage rating depends on the specific series and manufacturing date, so it is crucial to consult the datasheet for exact specifications. The HC suffix may denote particular characteristics related to its high capacitance or specific application requirements.
