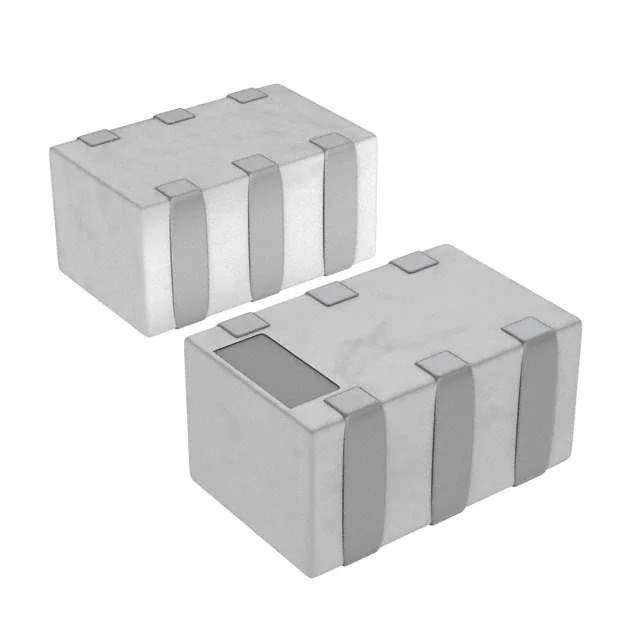

The DPX205950DT-9026A1 is a diplexer designed for RF multiplexing applications.

• Frequency Bands: It is capable of handling two frequency bands, with a low band of 2.4GHz to 2.5GHz and a high band of 4.9GHz to 5.95GHz.
• Attenuation: With low band attenuation ranging from 10.00dB to 35.00dB and high band attenuation ranging from 15.00dB to 27.00dB, this diplexer effectively separates and combines signals in the desired frequency ranges.
• Return Loss: The return loss of 15.5dB for the low band and 17.0dB for the high band ensures efficient signal transmission.
• Package: With a surface mount package and a standard package of 2,000 pcs, it is suitable for high-volume production.
• Manufacturer: Manufactured by TDK Corporation, a trusted name in the industry, this diplexer offers reliable performance for RF multiplexing applications.
