Same model may have multiple batches, images only for reference.

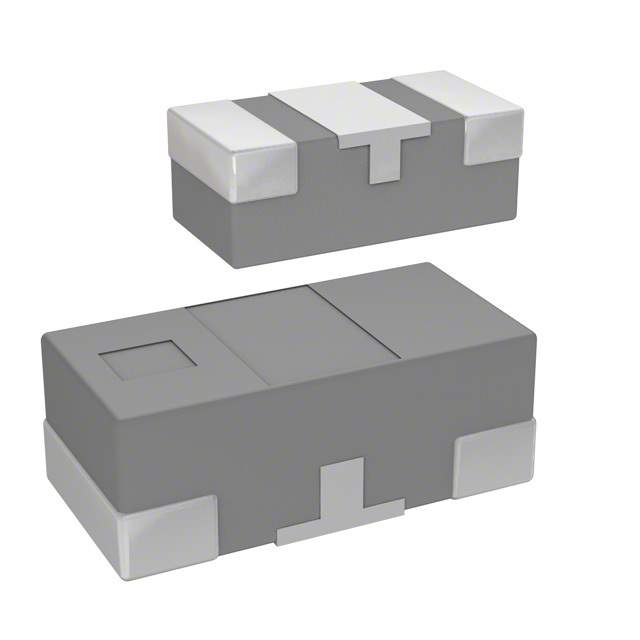

DEA162450BT-2174A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-2174A1

Part No DEA162450BT-2174A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BAND PASS 2.45GHZ 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) Bandwidth 0603 (1608 Metric), 3 PC Pad
Manufacturer TDK Corporation
Series DEA
Package Reel - TR
Part Status Not For New Designs
Mounting Surface Mount
Package 0603 (1608 Metric), 3 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 445-15642-6, 445-15642-1, 445-15642-2
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868327-DEA162450BT-2174A1
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-2174A1 CAD Model

Description

The DEA162450BT-2174A1 from TDK Corporation is a bandpass RF filter with a center frequency of 2.45GHz and a bandwidth of 0603 (1608 Metric).

  • PC pad: 3 PC pad
  • Mounting: Surface mount packaging
  • Lifecycle: Not for new designs
  • Packaging: Reel-TR packaging
  • Quantity per Package: 4000
