Same model may have multiple batches, images only for reference.

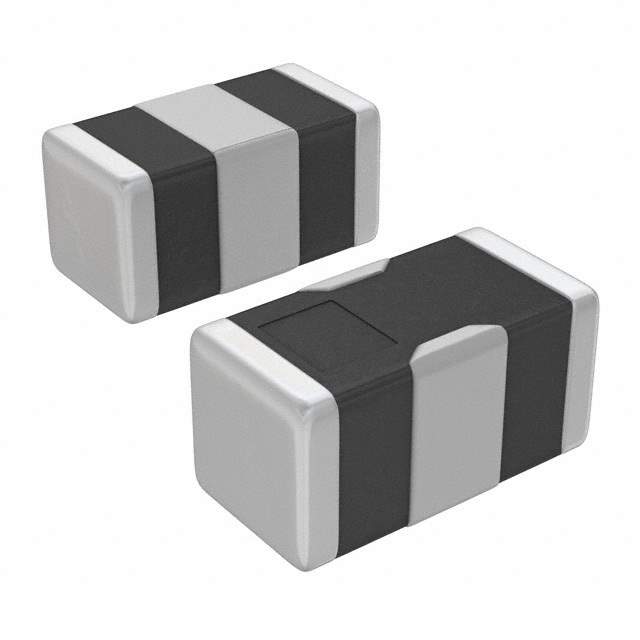

DEA162450BT-1210A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-1210A1

Part No DEA162450BT-1210A1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS 2.4GHZ WLAN SMD
Datasheet
DEA162450BT-1210A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 3dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.026" (0.65mm)
Win Source Part Number 014092-DEA162450BT-1210A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-1210A1 CAD Model

Description

DEA162450BT-1210A1 Ceramic Filter

Designed for cutting-edge frequency management, the DEA162450BT-1210A1 ceramic filter offers precision engineering suitable for advanced technological applications.

  • Applications: Commonly used in satellite communications, radar systems, and advanced communication networks.
  • Features:
    • Exceptional frequency stability.
    • Minimal signal degradation.
    • Rugged construction for extended service life.
  • Benefits:
    • Ensures high fidelity in signal processing.
    • Reduces maintenance with long-lasting components.
    • Compact design adaptable to various system requirements.

    Additional details: It offers a wide operational bandwidth, enabling versatile use across different frequency standards.
