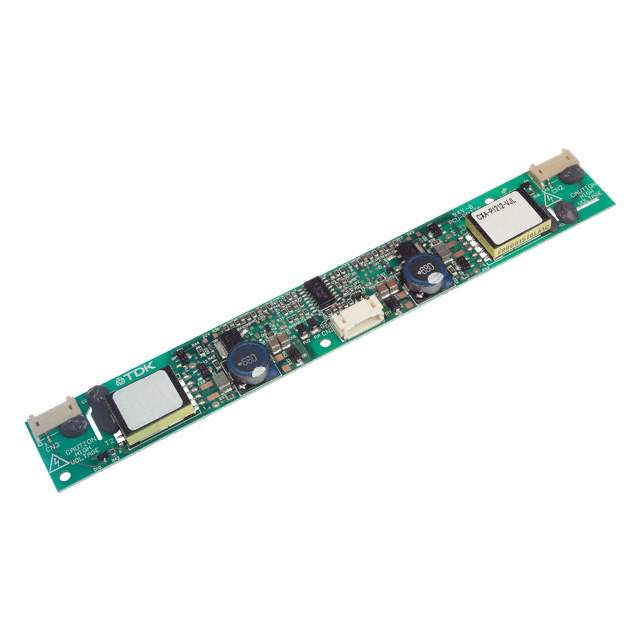

The TDK CXA-0217 is an inverter transformer designed to power Cold Cathode Fluorescent Lamps (CCFLs). CCFLs are commonly used for backlighting in LCD screens, particularly in older laptops and monitors. The CXA-0217 steps up a low voltage DC input to the high voltage AC required to ignite and operate a CCFL. Given its 'END - OF - LIFE' status, sourcing this component may be challenging, requiring consideration of alternative solutions or replacements.

Applications:

• Laptop LCD Backlights: Powers the CCFL backlight in older laptop displays.
• LCD Monitors: Used in older LCD monitors to provide the necessary high voltage for the CCFL backlight.
• Industrial Displays: Used in various industrial LCD displays requiring CCFL backlights.
• Automotive Displays: Powers CCFL backlights in older automotive displays.
• Other CCFL Applications: Any application requiring a compact and efficient high-voltage power supply for a CCFL.

Features:

• High Efficiency: Designed for efficient power conversion to minimize energy loss and heat generation.
• Compact Size: Small footprint allows for easy integration into space-constrained devices.
• Stable Output: Provides a stable and consistent high-voltage output for reliable CCFL operation.
• Overload Protection: Incorporates protection circuitry to prevent damage from overloads and short circuits.
• Wide Input Voltage Range: Compatible with a range of input voltage levels.

Benefits:

• Reliable Backlighting: Ensures consistent and bright illumination for LCD displays.
• Long CCFL Lifespan: Provides stable power to extend the lifespan of the CCFL lamp.
• Reduced Energy Consumption: High efficiency minimizes energy waste and operating costs.
• Easy Integration: Compact size and standard connections simplify installation and integration.
• Enhanced Display Performance: Contributes to improved image quality and readability.

Additional Details:

The CXA-0217's key specifications include its input voltage range, output voltage, operating frequency, and power output. These specifications are critical for ensuring compatibility with the specific CCFL being used. It is important to consult the TDK datasheet for the CXA-0217 for detailed electrical characteristics and application notes. Due to its 'END - OF - LIFE' status, consider carefully evaluating the availability of replacements. When replacing this part, pay close attention to pin-out configurations and voltage/current requirements to ensure compatibility.
