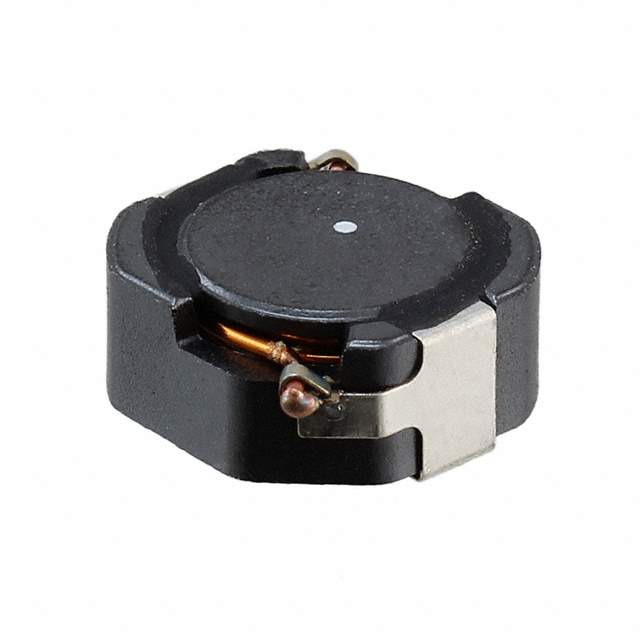

CLF12555T-6R8N Real Image
Same model may have multiple batches, images only for reference.

CLF12555T-6R8N

Part No CLF12555T-6R8N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 4.7A 19.5MOHM SM / 6.8 µH Shielded Drum Core, Wirewound Inductor 4.7 A 19.5mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series CLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 4.7 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 19.5mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.476" W (12.50mm x 12.10mm)
Height - Seated (Max) 0.230" (5.85mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names CLF12555T6R8N,445-9615-1,445-9615-2,445-9615-6
Standard Package 500
Win Source Part Number 1187008-CLF12555T-6R8N
Ultra Librarian 3D Model Ultra Librarian CLF12555T-6R8N CAD Model

Description

The CLF12555T-6R8N is a fixed inductor from TDK Corporation.

  • Inductance: 6.8 µH
  • Tolerance: ±30%
  • Type: Shielded drum core, wirewound
  • Mounting: Surface mount (SMD/SMT)
  • Maximum Seated Height: 0.230" (5.85mm)
  • Core Material: Ferrite
  • DC Resistance (DCR): 19.5mOhm max
  • Operating Temperature: -40°C to 125°C
  • Package: Tape and reel
  • Standard Package Quantity: 500
  • Status: Obsolete
  • Alternative Part Number: CLF12555T6R8N
