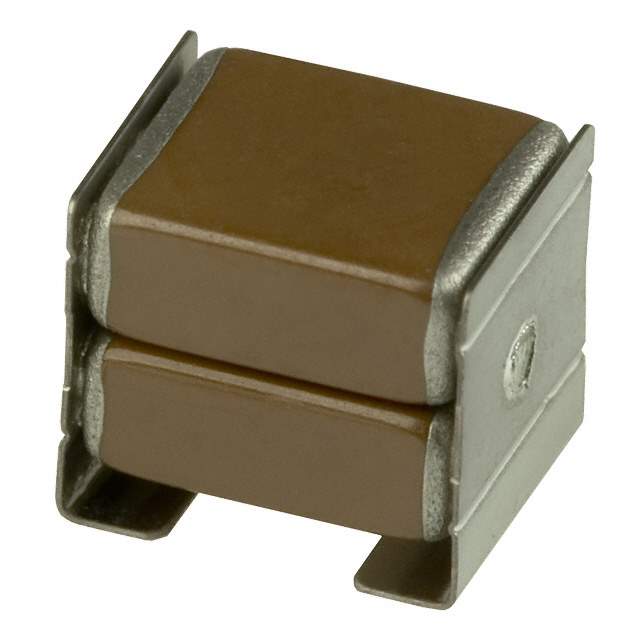

The CKG57NX7S2A226MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits due to their small size, high capacitance, and excellent electrical characteristics. They are commonly used for decoupling, bypassing, filtering, and energy storage.

Applications

• Decoupling: Used to decouple power supply lines in digital circuits, reducing noise and voltage fluctuations.
• Bypassing: Employed to bypass high-frequency signals to ground, preventing them from interfering with other parts of the circuit.
• Filtering: Applied in filter circuits to remove unwanted frequencies from a signal.
• Timing Circuits: Utilized in timing circuits to control the timing of events in electronic systems.
• Energy Storage: Used to store electrical energy in various applications, such as power supplies and energy harvesting systems.

Features

• High Capacitance: Offers a capacitance value of 22µF (as indicated by '226' which means 22 x 10^6 pF = 22µF), suitable for various applications.
• Small Size: Compact size allows for use in space-constrained applications. Size code 57.
• High Reliability: Provides stable performance over a wide range of temperatures and operating conditions.
• Low ESR (Equivalent Series Resistance): Minimizes energy loss and improves performance in high-frequency applications.
• Surface Mount Technology (SMT): Designed for automated assembly, reducing manufacturing costs and improving reliability.

Benefits

• Improved Circuit Stability: Stabilizes voltage levels and reduces noise, leading to improved circuit performance.
• Reduced Interference: Filters out unwanted frequencies, preventing interference with other components.
• Enhanced System Reliability: Provides stable performance over a wide range of operating conditions, ensuring reliable operation.
• Compact Design: Allows for smaller and more efficient electronic devices.
• Cost-Effective: Offers a cost-effective solution for various electronic applications.

Additional Details

The 'CKG57' indicates the capacitor's size and series designation. 'NX7S' specifies the dielectric material (likely X7S), indicating a temperature-stable ceramic. The '2A' indicates a voltage rating of 100V. Multilayer ceramic capacitors like the CKG57NX7S2A226MT009W are manufactured using a process of layering ceramic materials and metal electrodes. The ceramic material provides the dielectric properties, while the metal electrodes provide the conductive paths for charge storage. The manufacturing process involves precisely layering the ceramic material and metal electrodes, followed by sintering at high temperatures to create a monolithic structure. The capacitor is then tested and packaged for use in electronic circuits.
