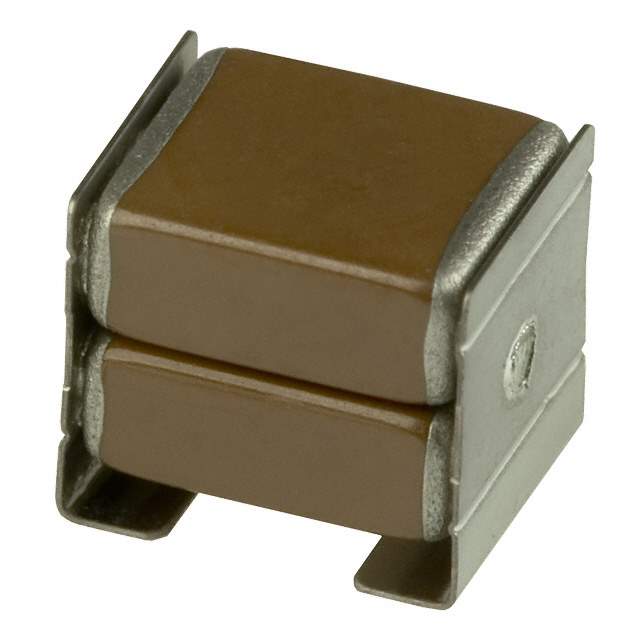

The CKG57NX7S1C107MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This component is primarily used in electronic circuits for applications such as decoupling, bypass, and filtering. Due to its ceramic construction, it provides stable performance across varying temperatures and voltages.

Applications

• Decoupling: Provides a stable voltage supply by filtering out noise and transients in digital circuits, microcontrollers, and integrated circuits. It acts as a local energy storage element.
• Bypass: Shunts high-frequency noise to ground, preventing it from propagating through the circuit and causing interference in sensitive components.
• Filtering: Used in filter circuits to selectively pass or block certain frequencies, such as in power supplies or signal processing circuits.
• General-Purpose Applications: Applicable in a wide range of electronic circuits requiring stable and reliable capacitance.

Features

• High Capacitance Value: High capacitance of 100µF, suitable for applications that require a large charge storage capacity.
• Voltage Rating: Rated at 16V, making it suitable for low-voltage applications.
• X7S Dielectric: Utilizes X7S dielectric material, offering stable performance across a wide temperature range with moderate capacitance variation.
• Surface Mount Technology (SMT): Designed for surface mount assembly on PCBs, facilitating automated manufacturing processes.
• RoHS Compliance: Compliant with the Restriction of Hazardous Substances directive.

Benefits

• Enhanced Circuit Stability: Provides a stable voltage supply and reduces noise, leading to improved circuit performance and reliability.
• Effective Noise Reduction: Shunts unwanted high-frequency noise to ground, preventing interference in sensitive components.
• Compact Design: Small size allows for high-density circuit designs and miniaturization of electronic devices.
• Wide Operating Temperature Range: Maintains stable performance across a wide temperature range, making it suitable for use in various environmental conditions.
• Environmentally Friendly: RoHS compliant, minimizing environmental impact.

Technical Specifications

• Capacitance: 100µF
• Capacitance Tolerance: ±20%
• Voltage Rating: 16V
• Dielectric Material: X7S
• Operating Temperature Range: -55°C to +125°C (Typical for X7S dielectric)
• Termination: Surface Mount (SMD)
• Size Code: Specific package size depends on the EIA standard. Refer to the official TDK datasheet for accurate dimensional information (e.g., 1812, 2220).

Important Note: Always consult the official TDK datasheet for the most accurate and detailed technical specifications and application guidelines.
