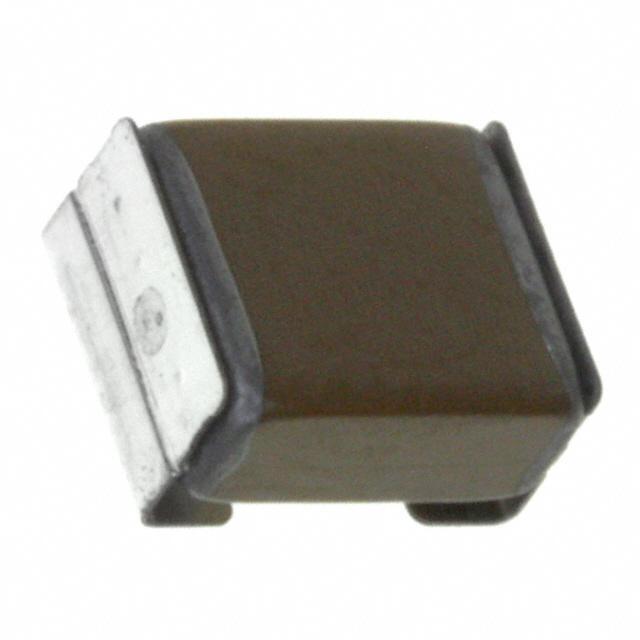

CKG57KX7R2A475M335JH TDK Corporation
Same model may have multiple batches, images only for reference.

CKG57KX7R2A475M335JH

Part No CKG57KX7R2A475M335JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4.7UF 100V X7R SMD / Cap Ceramic 4.7uF 100V X7R 20% 1 Stacked 125°C T/R
Datasheet
CKG57KX7R2A475M335JH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel package
Capacitance 4.7μF
Tolerance ±20%
Voltage Rating DC 100V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features Low ESL
Applications SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Nonstandard SMD
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Thickness (Maximum) 0.138" (3.50mm)
Lead Style L-Lead
Win Source Part Number 771531-CKG57KX7R2A475M335JH
Popularity Medium
Supply and Demand Status Limited
Family Name CKG57
Introduction Date May 26, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CKG57KX7R2A475M335JH CAD Model

Description

The TDK Corporation CKG57KX7R2A475M335JH is an electronic component that belongs to the MEGACAP, CKG series.

  • Applications: SMPS Filtering, Bypass, and Decoupling
  • Features: Low ESL
  • Capacitance: 4.7μF
  • Tolerance: ±20%
  • Voltage Rating DC: 100V
  • Temperature Coefficient: X7R
  • Package: Nonstandard SMD
  • Dimension: 0.236" L x 0.197" W (6.00mm x 5.00mm)
