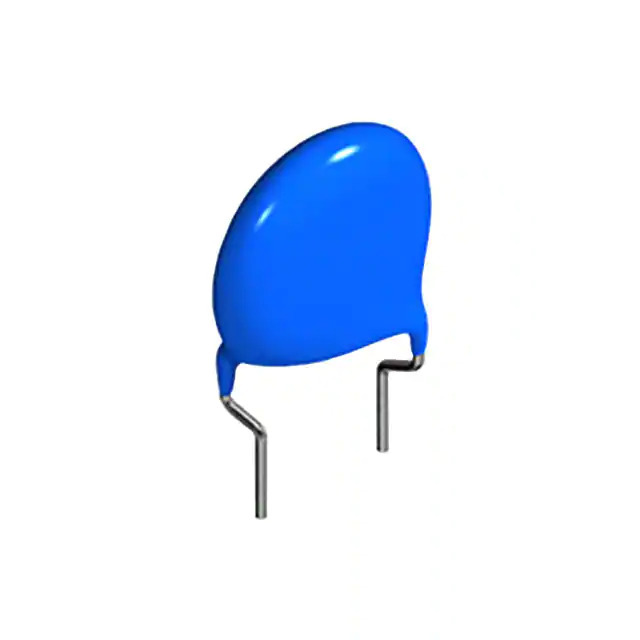

Same model may have multiple batches, images only for reference.
CK45-B3FD222KYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD222KYGNA

Part No CK45-B3FD222KYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 3KV RADIAL / 2200 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359991-CK45-B3FD222KYGNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD222KYGNA CAD Model

Description

The CK45-B3FD222KYGNA is a high voltage ceramic capacitor from TDK Corporation. It is part of the CK45 series and has a capacitance of 2200 pF with a tolerance of ±10%.

  • Capacitance: 2200 pF
  • Tolerance: ±10%
  • Rated Voltage: 3000V (3kV)
  • Applications: General Purpose
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height: 0.650" (16.50mm)
  • Temperature Coefficient: B
  • Status: Active
