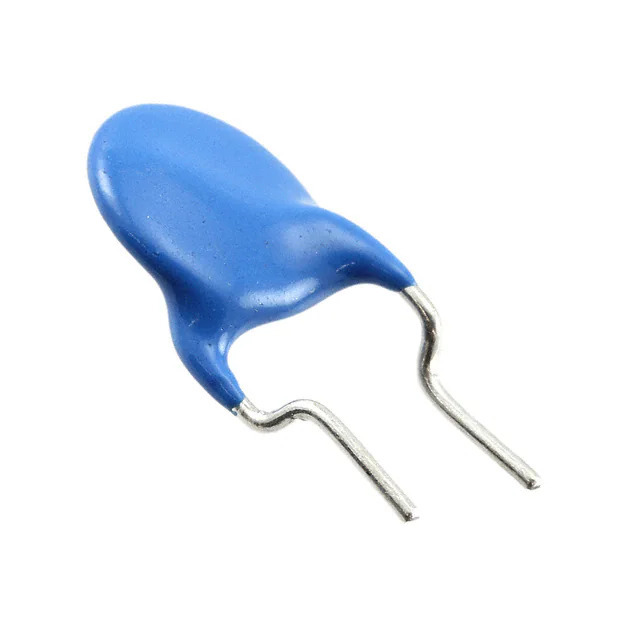

Same model may have multiple batches, images only for reference.
CK45-B3FD221KYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD221KYNNA

Part No CK45-B3FD221KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 220PF 3KV RADIAL / 220 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 220 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360018-CK45-B3FD221KYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD221KYNNA CAD Model

Description

The TDK Corporation CK45 series ceramic capacitor is a high voltage capacitor with a capacitance of 220 pF and a voltage rating of 3000V (3kV).

  • Application: General Purpose
  • Tolerance: ±10%
  • Package: Radial, Disc
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.217" Dia (5.50mm)
  • Seated Height: 0.374" (9.50mm)
  • Series: CK45
  • Packaging: Bulk
  • Status: Active
  • Operating Temperature: -25°C to 105°C
  • Failure Rate: Not Specified
  • Thickness: Not Specified
  • HTSUS Code: 8532.24.0060
  • ECCN: EAR99
