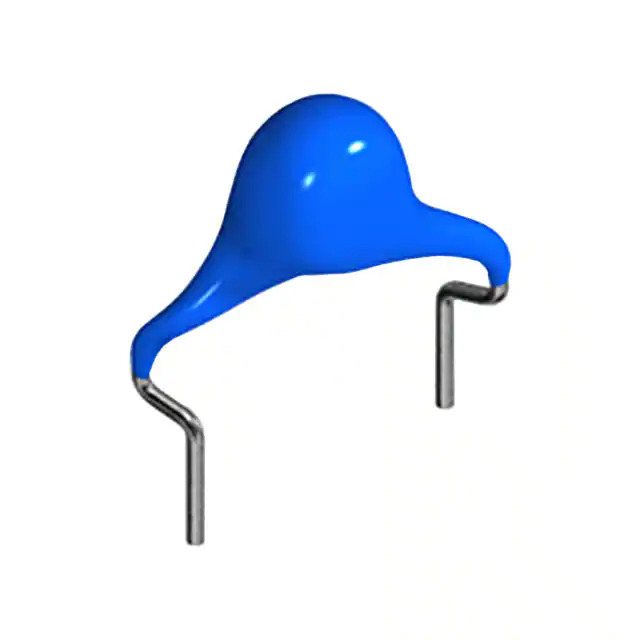

Same model may have multiple batches, images only for reference.
CK45-B3FD101KYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3FD101KYGNA

Part No CK45-B3FD101KYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 3KV RADIAL / 100 pF ±10% 3000V (3kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 100 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359962-CK45-B3FD101KYGNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3FD101KYGNA CAD Model

Description

The CK45-B3FD101KYGNA is a ceramic capacitor manufactured by TDK Corporation. It is part of the Capacitors - Ceramic Capacitors category.

  • Capacitance: 100 pF
  • Voltage Rating: 3000V (3kV)
  • Tolerance: ±10%
  • Temperature Range: -25°C to 105°C
  • Package: Radial, Disc
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Size/Dimension: 0.217" Dia (5.50mm)
  • Height: 0.374" (9.50mm)
  • Application: General-Purpose
  • Production Status: Active
  • Packaging: Bulk
