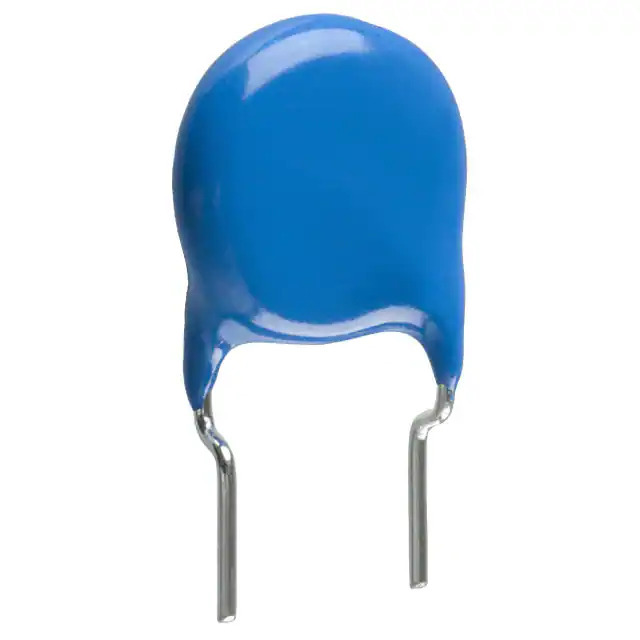

Same model may have multiple batches, images only for reference.
CK45-B3DD152KYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3DD152KYNNA

Part No CK45-B3DD152KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1500PF 2KV RADIAL / 1500 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Active
Capacitance 1500 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.335" Dia (8.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359948-CK45-B3DD152KYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3DD152KYNNA CAD Model

Description

The CK45 series from TDK Corporation offers high voltage ceramic capacitors with a capacitance of 1500 pF. This particular model, the CK45-B3DD152KYNNA, is a through-hole capacitor with a radial, disc package.

  • Capacitance: 1500 pF
  • Voltage Rating: 2000V (2kV)
  • Tolerance: ±10%
  • Application: General Purpose
  • Operating Temperature: -25°C to 105°C
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.335" Diameter (8.50mm)
  • Seated Height: 0.492" (12.50mm)
  • Product Status: Active
  • MSL: Not Affected
