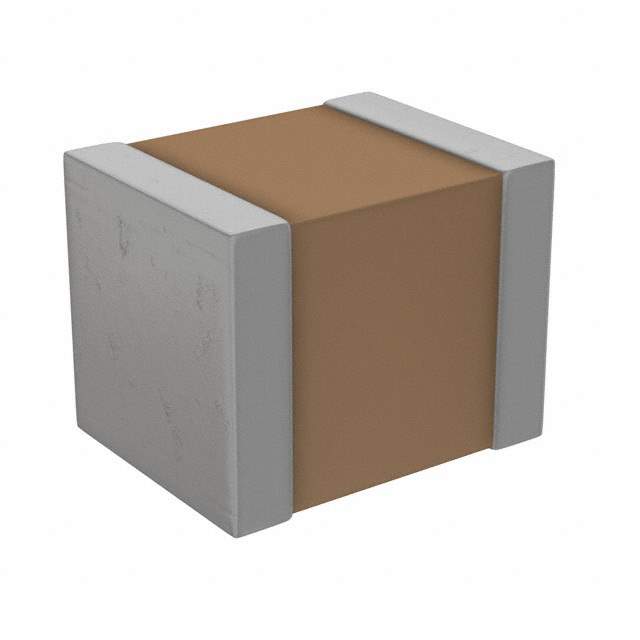

The CGA6L2X7R1H105KT0Y0N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It's a general-purpose capacitor with a relatively high capacitance value, suitable for applications requiring stable performance over a broad temperature range.

Applications

• Decoupling capacitors for power supplies
• Bypass capacitors in signal processing circuits
• Filtering capacitors in various electronic circuits
• Smoothing capacitors in DC power lines
• General-purpose applications in electronic devices

Features

• High Capacitance: Offers a capacitance of 1.0µF, suitable for applications needing significant capacitance for filtering or decoupling.
• Voltage Rating: Rated at 50V, allowing use in a variety of low to medium voltage circuits.
• X7R Dielectric: Employs X7R dielectric material, providing stable performance across a wide temperature range (-55°C to +125°C).
• Large Case Size: Size 1206 allows for better power dissipation.
• RoHS Compliance: Compliant with RoHS standards for environmental protection.

Benefits

• Stable Capacitance: X7R dielectric minimizes capacitance variation with temperature and voltage.
• High Reliability: Manufactured by TDK, a reputable manufacturer known for quality components.
• Effective Filtering: High capacitance value enables effective filtering of noise and ripple.
• Wide Operating Temperature: Reliable operation across a wide temperature range of -55°C to +125°C.
• Cost-Effective: Provides a good balance of performance and cost for general-purpose applications.

Additional Details

The CGA6L2X7R1H105KT0Y0N utilizes a ceramic dielectric and is constructed using multilayer technology. It's designed for reflow soldering. The termination is typically matte tin-plated for optimal solderability. The case size is 1206. The X7R dielectric ensures that the capacitance will change within ±15% from -55°C to +125°C.
