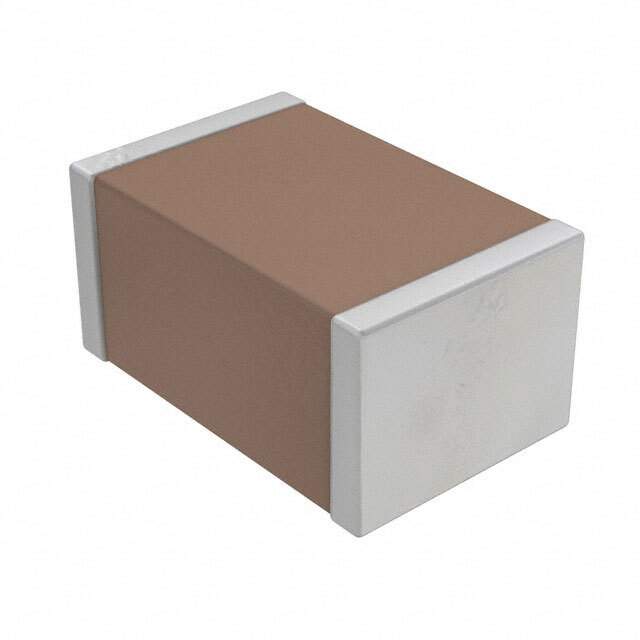

The CGA4C2C0G2A221JT0Y0N is a multilayer ceramic capacitor (MLCC) from TDK Corporation. MLCCs are fundamental components in electronic circuits, providing functions such as decoupling, bypassing, and filtering. The CGA series is known for its compact size and reliable performance, making it suitable for a wide range of applications.

Applications

• Mobile Devices: Used for decoupling and filtering in smartphones, tablets, and other portable electronics.
• Wireless Communication: Employed in wireless modules and devices for impedance matching and noise reduction.
• Audio Equipment: Found in audio amplifiers and signal processing circuits for signal filtering.
• Power Supplies: Used for smoothing and filtering DC power in various power supply designs.
• General Electronics: Suitable for a broad spectrum of general-purpose electronic circuits.

Features

• Capacitance: Offers a capacitance value of 220pF.
• Voltage Rating: Rated for 100V.
• C0G Dielectric: Utilizes a C0G (NP0) dielectric material, which provides extremely stable capacitance over a wide temperature range (-55°C to +125°C).
• Small Size: Available in a compact 0805 case size (2012 Metric).
• RoHS Compliant: Meets RoHS requirements, ensuring compliance with environmental regulations.
• High Q Factor: Offers a high Q factor, making it suitable for high-frequency applications.

Benefits

• Excellent Stability: The C0G dielectric provides extremely stable capacitance with minimal variation over temperature, voltage, and frequency.
• Low Loss: Offers low dielectric loss, ensuring efficient circuit performance.
• Compact Size: Its small size allows for high-density circuit designs.
• High Reliability: Provides a long and reliable service life in demanding applications.
• Suitable for High-Frequency Applications: The high Q factor makes it ideal for use in high-frequency circuits.

Additional Details

The CGA4C2C0G2A221JT0Y0N capacitor is designed for surface mount technology (SMT) and is compatible with automated assembly processes. The C0G dielectric offers a capacitance variation of ±30 ppm/°C. This capacitor is well-suited for applications requiring high stability, low loss, and small size, such as precision timing circuits and RF applications.
