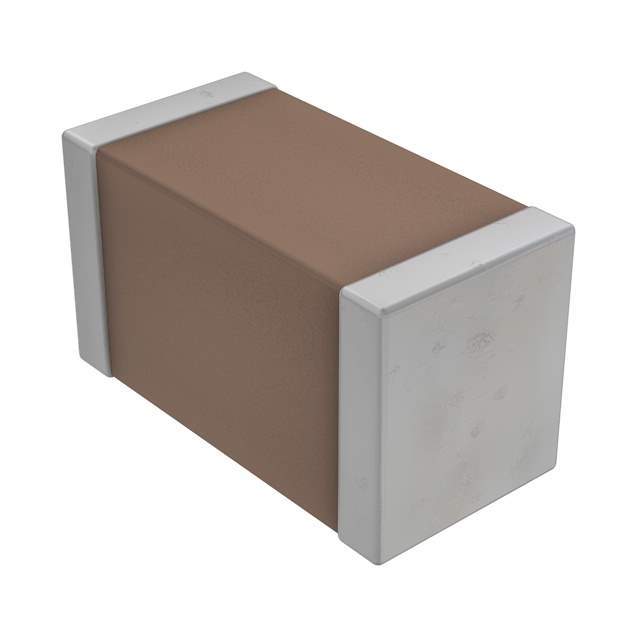

The CGA3E2X7R2A102KT0Y0N is a multilayer ceramic capacitor (MLCC) from TDK Corporation, designed for general-purpose applications. This capacitor utilizes a X7R dielectric, offering stable performance over a wide temperature range. It is part of the CGA series, known for its reliability and compact size, making it suitable for various electronic circuits.

Applications

• Bypass Capacitors: Used to filter noise and provide a stable voltage supply in digital and analog circuits.
• Decoupling Capacitors: Essential for decoupling power rails in integrated circuits and microcontrollers.
• Smoothing Capacitors: Employed in power supplies to reduce voltage ripple.
• Timing Circuits: Suitable for timing applications requiring stable capacitance values.
• Filtering Applications: Used in filters to remove unwanted frequencies in electronic circuits.

Features

• X7R Dielectric: Offers stable performance with temperature variations.
• Multilayer Ceramic Capacitor (MLCC): Provides high capacitance in a small package.
• Compact Size: Allows for high-density mounting on PCBs.
• High Reliability: Ensures stable operation and long lifespan.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Stable Performance: The X7R dielectric ensures minimal capacitance variation over temperature, providing reliable circuit operation.
• Space Saving: Its compact size allows for dense placement on printed circuit boards, optimizing space utilization.
• Noise Reduction: Effectively filters out unwanted noise and voltage fluctuations in electronic circuits.
• Improved Circuit Stability: Helps maintain a stable voltage supply, enhancing the overall performance and reliability of electronic devices.
• Wide Range of Applications: Suitable for diverse electronic applications due to its stable characteristics and reliability.

Specifications

The CGA3E2X7R2A102KT0Y0N capacitor has a capacitance value of 1000 pF (1 nF). It operates at a rated voltage of 100 VDC. The operating temperature range is typically -55°C to +125°C. The tolerance on the capacitance is ±10%. It is available in a specific case size, commonly 0603. The termination is typically made of nickel barrier with tin plating for good solderability.
