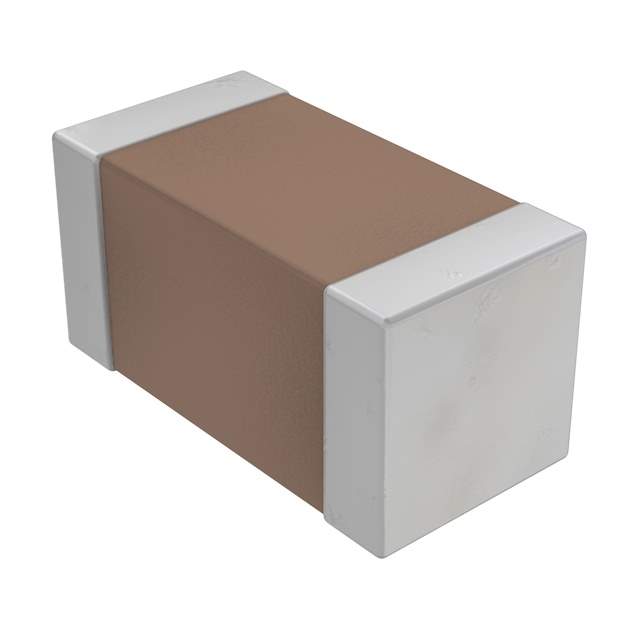

CGA1A2X7R1C472K030BA Real Image
Same model may have multiple batches, images only for reference.

CGA1A2X7R1C472K030BA

Part No CGA1A2X7R1C472K030BA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 16V X7R 0201 / 4700 pF ±10% 16V Ceramic Capacitor X7R 0201 (0603 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 16V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Case / Package 0201 (0603 Metric)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Thickness (Max) 0.013" (0.33mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 445-12077-6,CGA1A2X7R1C472KT0YNN,445-12077-1,445-12077-2
Standard Package 15,000
Win Source Part Number 1329923-CGA1A2X7R1C472K030BA
Ultra Librarian 3D Model Ultra Librarian CGA1A2X7R1C472K030BA CAD Model

Description

This capacitor, manufactured by TDK Corporation, is a ceramic capacitor with a capacitance of 4700 pF and a voltage rating of 16V.

  • Capacitance: 4700 pF
  • Voltage Rating: 16V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Part Number: 1329923-CGA1A2X7R1C472K030BA
  • Packaging: Reel
  • Standard Packages: 15,000
  • Application: Automotive
  • Operating Temperature: -55°C to 125°C
  • ROHS3 Compliant: Yes
  • AEC-Q200 Rated: Yes
