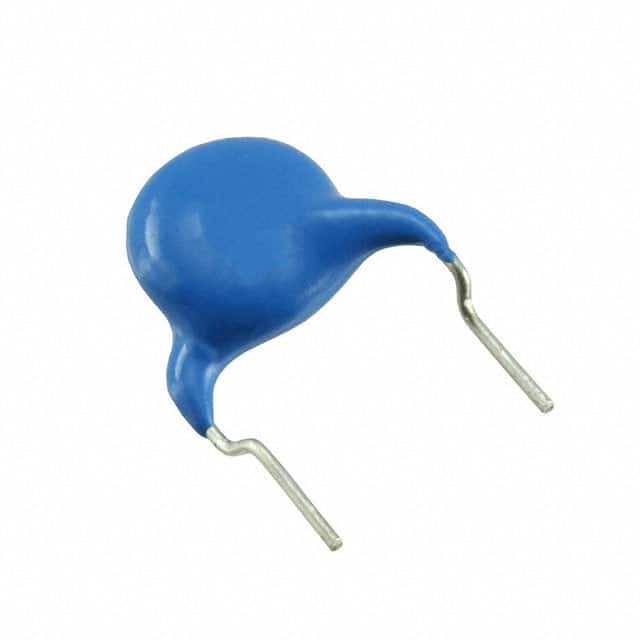

Same model may have multiple batches, images only for reference.
CD45-E2GA222M-NKA
Same model may have multiple batches, images only for reference.

CD45-E2GA222M-NKA

Part No CD45-E2GA222M-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 440VAC RADIAL / 2200 pF ±20% 440VAC Ceramic Capacitor E Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 846155-CD45-E2GA222M-NKA
Ultra Librarian 3D Model Ultra Librarian CD45-E2GA222M-NKA CAD Model

Description

The TDK Corporation CD series capacitor is a high voltage ceramic capacitor with a capacitance of 2200 pF and a voltage rating of 440VAC.

  • Series: CD
  • Capacitance: 2200 pF
  • Voltage - Rated: 440VAC
  • Tolerance: ±20%
  • Temperature Coefficient: E
  • Application: Safety
  • Features: Formed Leads
  • Lead Spacing: 0.394" (10.00mm)
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Operating Temperature: -25°C to 105°C
  • Product Status: Active
  • Standard Package: 1,000 pcs
