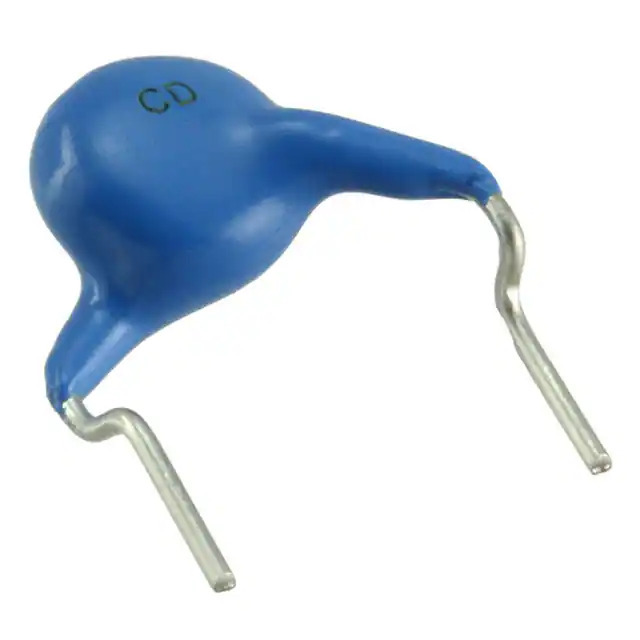

CD45-B2GA471K-NKA TDK Corporation
Same model may have multiple batches, images only for reference.

CD45-B2GA471K-NKA

Part No CD45-B2GA471K-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 470PF 440VAC RADIAL / 470 pF ±10% 440VAC Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Active
Capacitance 470 pF
Tolerance ±10%
Voltage - Rated 440VAC
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 85°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360560-CD45-B2GA471K-NKA
Ultra Librarian 3D Model Ultra Librarian CD45-B2GA471K-NKA CAD Model

Description

The TDK Corporation CD series capacitor is a radial, disc capacitor designed for safety applications.

  • Capacitance: 470pF
  • Voltage Rating: 440VAC
  • Temperature Range: -25°C to 85°C
  • Tolerance: ±10%
  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Size: 0.315" diameter (8.00mm)
  • Lead Spacing: 0.394" (10.00mm)
