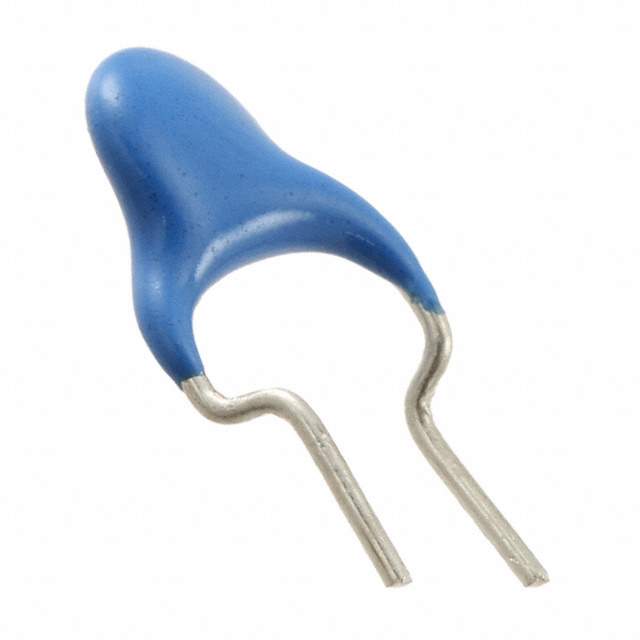

Same model may have multiple batches, images only for reference.

CC45SL3FD470JYNNA

Name: CC45SL3FD470JYNNA
Brand: TDK Corporation
SKU: 1197382
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC45SL3FD470JYNNA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 47PF 3KV SL RADIAL / 47 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Mfr	TDK Corporation
Series	CC45
Package	Bulk
Capacitance	47 pF
Tolerance	±5%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	SL
Temperature Range - Operating	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Applications	General Purpose
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Other Names	CC45SL3FD470JYNNA-ND,CC45SL3FD470JYNNA02,445-174361
Standard Package	1,000
Win Source Part Number	1197382-CC45SL3FD470JYNNA
Ultra Librarian 3D Model	Ultra Librarian CC45SL3FD470JYNNA CAD Model

Alternative Products

Description

The CC45SL3FD470JYNNA capacitor is a ceramic capacitor that is part of the CC45 series.

Series: CC45
Capacitance: 47pF
Tolerance: ±5%
Voltage Rating: 3000V (3kV)
Temperature Coefficient: SL
Lead Spacing: 0.295" (7.50mm)
Lead Style: Formed leads - kinked
Mounting Type: Through Hole
Package/Case: Radial, Disc
Temperature Range: -25°C to 125°C
