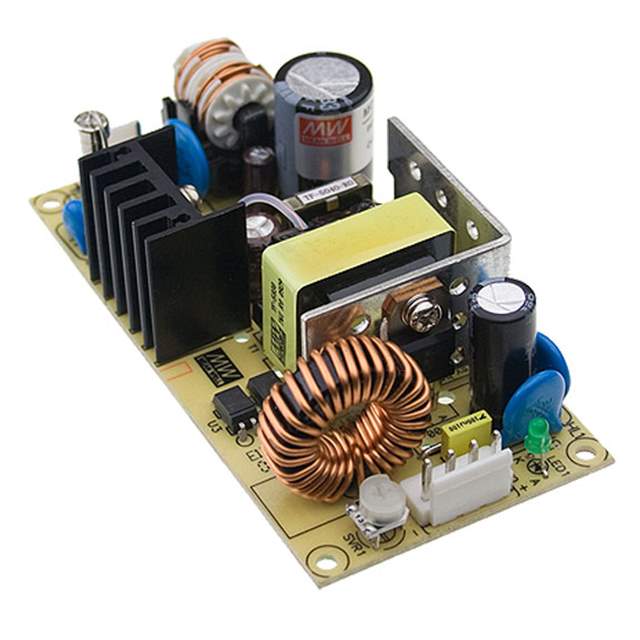

Same model may have multiple batches, images only for reference.

PSD-30A-24

Name: PSD-30A-24
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1030084
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PSD-30A-24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 24V 30W / Open Frame DC DC Converter 1 Output 24V 1.25A 18V Input
Datasheet	PSD-30A-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	PSD-30 (30W)
Package	Box
Type	Open Frame
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Number of Outputs	1
Voltage - Output 1	24V
Current - Output (Max)	1.25A
Power (Watts)	30W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Efficiency	78%
Temperature Range - Operating	-20°C ~ 60°C (With Derating)
Mounting Type	Chassis Mount
Dimension	4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
Approval Agency	CE
Base Product Number	PSD-30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	PSD-30A-24-ND,1866-5415
Standard Package	72
Win Source Part Number	1030084-PSD-30A-24
Ultra Librarian 3D Model	Ultra Librarian PSD-30A-24 CAD Model

Alternative Products

Description

The PSD-30A-24 is a DC DC converter that is part of the PSD-30 (30W) series and is manufactured by MEAN WELL USA Inc.

Component Type: Open Frame
Package: Box
Applications: ITE (Commercial)
Power (Watts): 30W
Voltage Isolation: 1.5 kV
Number of Outputs: 1
Current - Output (Max): 1.25A
Voltage - Input (Min): 9V
Voltage - Input (Max): 18V
Voltage - Output 1: 24V
Efficiency: 78%
Mounting Type: Chassis Mount
Operating Temperature Range: -20°C to 60°C (with derating)
