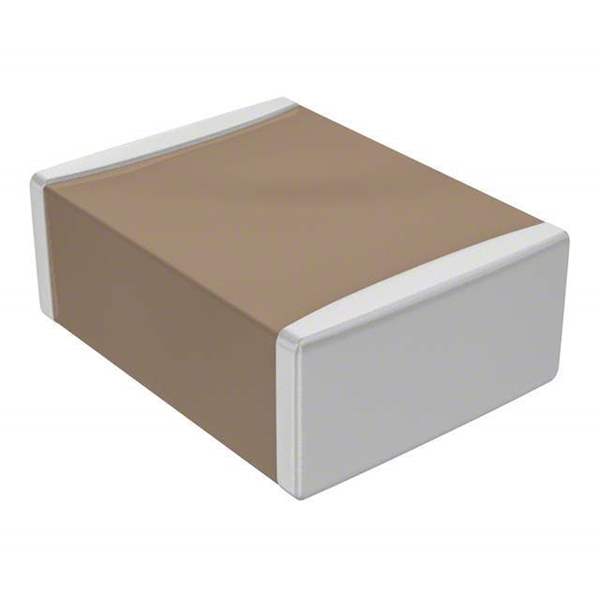

C5750X7R1C476M230KB TDK Corporation
Same model may have multiple batches, images only for reference.

C5750X7R1C476M230KB

Part No C5750X7R1C476M230KB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 47UF 16V X7R 2220 / Cap Ceramic 47uF 16V X7R 20% Pad SMD 2220 125°C Low ESR T/R
Datasheet
C5750X7R1C476M230KB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series C
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 16V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Applications General
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.098" (2.50mm)
Win Source Part Number 771068-C5750X7R1C476M230KB
Popularity Medium
Supply and Demand Status Limited
Family Name C5750
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian C5750X7R1C476M230KB CAD Model

Description

The TDK Corporation C5750X7R1C476M230KB is a general-purpose MLCC capacitor that comes in a 2220 (5750 Metric) package.

  • Capacitance: 47μF
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Series: C5750
  • Package: 2220 (5750 Metric)
  • Alternative Part: GMC55X7R476M16NT
  • Estimated EOL Date: 2028
  • Halogen-Free: Yes
  • Supply and Demand Status: Limited
