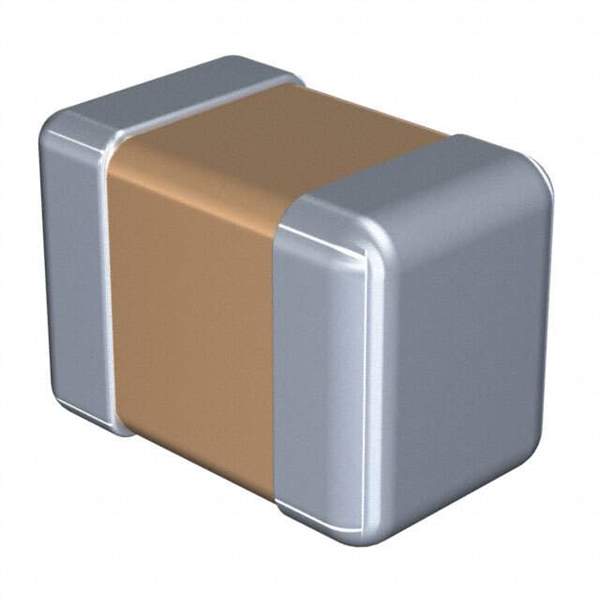

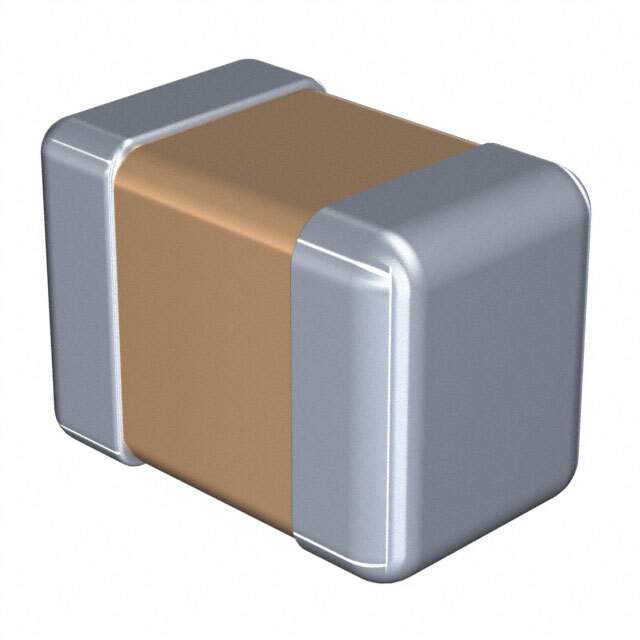

The C2012C0G2E152J is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor features a C0G (NP0) dielectric, renowned for its excellent stability and low loss characteristics. It is housed in an 0805 (2012 metric) case size, making it suitable for a wide range of applications where high precision and reliability are paramount.

Applications

• High-Frequency Circuits: Ideal for use in RF and microwave circuits due to its low ESR and ESL.
• Timing Circuits: Suitable for timing applications where stable capacitance is required.
• Filtering: Used in precision filtering circuits where minimal signal distortion is crucial.
• Oscillators: Employed in oscillators to maintain frequency stability.
• Medical Devices: Found in medical equipment where reliability and precision are essential.

Features

• C0G (NP0) Dielectric: Offers excellent capacitance stability with temperature and voltage.
• Low ESR (Equivalent Series Resistance): Minimizes energy loss and heat generation.
• Low ESL (Equivalent Series Inductance): Reduces parasitic inductance, improving high-frequency performance.
• 0805 (2012 metric) Case Size: Compact size allows for high-density mounting.
• Surface Mount Technology (SMT): Designed for automated assembly.

Benefits

• Exceptional Stability: Maintains capacitance value over a wide range of temperatures and voltages.
• High Q-Factor: Ensures minimal signal loss in high-frequency applications.
• Precise Timing: Provides accurate timing in critical circuits.
• Reliable Performance: Delivers consistent and dependable operation in demanding environments.
• Easy Integration: SMT design simplifies manufacturing and reduces assembly costs.

Additional Details

The C2012C0G2E152J has a capacitance of 1500pF (1.5nF) with a tolerance of ±5%. It has a rated voltage of 250V. The operating temperature range typically spans from -55°C to +125°C. The C0G dielectric provides a temperature coefficient of approximately 0 ±30 ppm/°C, ensuring minimal capacitance drift with temperature changes. The terminations are typically nickel barrier with tin plating, guaranteeing excellent solderability. This capacitor is well-suited for applications demanding stable and reliable performance under varying conditions.
