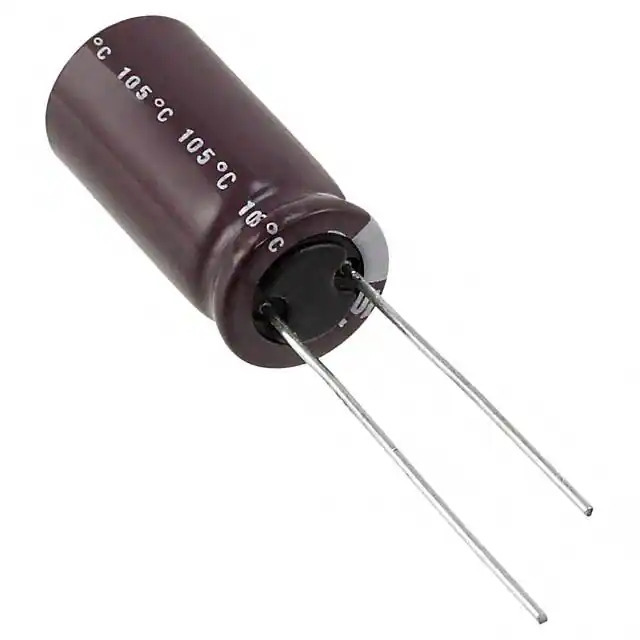

Same model may have multiple batches, images only for reference.

UPW1V471MPD1TD

Name: UPW1V471MPD1TD
Brand: Nichicon
SKU: 1357677
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1V471MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 35V RADIAL / 470 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPW1V471MPD1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	915 mA @ 120 Hz
Ripple Current @ High Frequency	1.22 A @ 100 kHz
Impedance	52 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357677-UPW1V471MPD1TD
Ultra Librarian 3D Model	Ultra Librarian UPW1V471MPD1TD CAD Model

Description

The UPW1V471MPD1TD is a radial aluminum electrolytic capacitor from Nichicon.

Series: UPW
Capacitance: 470 µF
Voltage Rating: 35 V
Tolerance: ±20%
Application: General Purpose
Ripple Current (Low Frequency): 915 mA @ 120 Hz
Ripple Current (High Frequency): 1.22 A @ 100 kHz
Lead Spacing: 0.197 inches (5.00 mm)
Size: 0.394 inches (10.00 mm) in diameter
Height (Seated): 0.866 inches (22.00 mm)
Polarization: Polarized
Lifetime: 5,000 hours @ 105°C
REACH Status: Unaffected
Lifecycle Status: Not Recommended for New Designs
