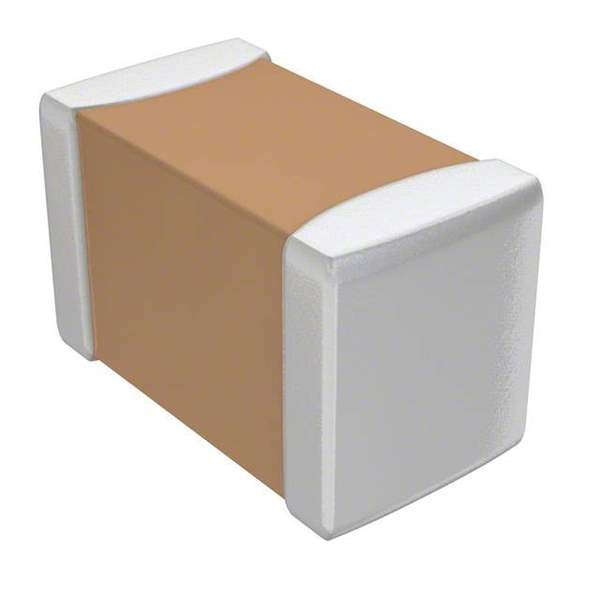

The C1608X5R0J225KT is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are fundamental components in modern electronics, used for decoupling, bypassing, filtering, and energy storage in a wide range of applications.

Applications

• Decoupling: Stabilizes power supply lines in digital circuits by reducing noise and voltage fluctuations.
• Bypassing: Shunts high-frequency signals to ground, reducing interference and improving signal clarity.
• Filtering: Used in filter circuits to attenuate unwanted frequencies and noise.
• General-Purpose Applications: Suitable for various general-purpose applications in electronic circuits.
• Consumer Electronics: Commonly used in smartphones, tablets, and other consumer devices.

Features

• X5R Dielectric: Employs an X5R dielectric material, offering a good balance between capacitance stability and size.
• Moderate Temperature Stability: Provides reasonable capacitance stability over a wide range of temperatures.
• Compact Size: The 0603 (1608 metric) package is ideal for high-density circuit boards.
• Low Impedance: Offers low impedance at high frequencies, enhancing circuit performance.
• RoHS Compliant: Meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Benefits

• Enhanced Circuit Reliability: Provides stable and reliable capacitance for consistent circuit performance.
• Noise Reduction: Effective decoupling and bypassing capabilities reduce noise and improve signal integrity.
• Extended Service Life: Ceramic construction ensures a long lifespan and robust performance.
• Space-Saving Design: Compact size allows for high-density circuit layouts and miniaturization.
• Environmentally Safe: RoHS compliance ensures minimal environmental impact.

Additional Details

The C1608X5R0J225KT features a capacitance of 2.2µF, a voltage rating of 6.3V, and a tolerance of ±10%. The X5R dielectric ensures stable performance within its operating temperature range. This capacitor is particularly well-suited for decoupling applications in power supplies and digital circuits where space is limited. To ensure optimal performance and reliability, proper soldering techniques and handling procedures should be followed during assembly.
