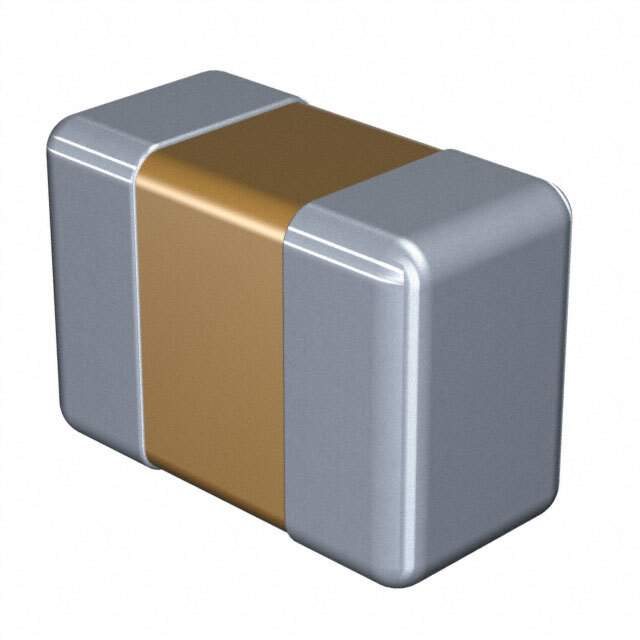

The C1005C0G1H270JT000F is a ceramic capacitor manufactured by TDK Corporation, designed for various electronic applications requiring stable and reliable performance. These capacitors are commonly used in circuits that demand minimal capacitance variation with changes in temperature and voltage. Part of TDK's C series, it is known for its high quality and dependable performance.

Applications

• RF Circuits: Used for impedance matching and filtering in radio frequency circuits.
• Oscillators: Employed in oscillator circuits to maintain stable frequency.
• Timing Circuits: Utilized in timing circuits requiring precise capacitance values.
• Sensor Circuits: Found in sensor applications needing stable and accurate measurements.
• Audio Equipment: Used in audio circuits for filtering and signal conditioning.

Features

• Capacitance: 27 pF capacitance value suitable for various applications.
• COG (NP0) Dielectric: Provides excellent temperature stability and low dielectric loss.
• Small Size: 0402 (1005 Metric) case size for compact designs.
• Voltage Rating: Rated for 50V, accommodating a wide range of voltage levels.
• RoHS Compliant: Complies with environmental standards, free from hazardous substances.

Benefits

• Temperature Stability: COG dielectric ensures minimal capacitance drift over temperature changes.
• High-Frequency Performance: Low ESR (Equivalent Series Resistance) for optimal performance at high frequencies.
• Space Saving: Compact size is ideal for high-density circuit layouts.
• Reliable Operation: TDK's manufacturing excellence ensures long-term reliability.
• Versatile Use: Suitable for a broad spectrum of electronic applications.

Additional Details

The C1005C0G1H270JT000F features a 0402 (1005 metric) case size, allowing for high-density mounting on printed circuit boards (PCBs). The COG (NP0) dielectric material ensures minimal capacitance change over a temperature range of -55°C to +125°C, making it suitable for demanding environments. The termination is typically nickel barrier with tin plating to provide excellent solderability and resistance to oxidation. Designed for reflow soldering processes, this capacitor meets stringent quality standards, making it a reliable choice for critical applications. It’s part of TDK’s broad range of MLCCs, known for their performance and durability. The 27 pF capacitance and 50V voltage rating make it a versatile component for use across numerous electronic devices.
