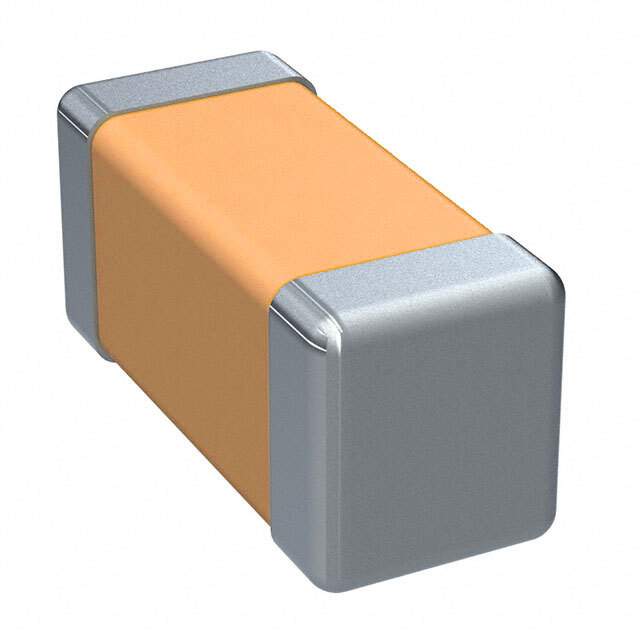

The C0402X5R0J103KT00NN is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed for general-purpose applications requiring stable performance and small size. The capacitor is part of TDK's C series, known for their reliability and high-quality construction.

Applications

• Bypass capacitors in digital circuits.
• Decoupling capacitors in power supplies.
• Filtering in signal lines.
• Smoothing in DC power rails.
• General-purpose applications in electronic circuits.

Features

• Capacitance: 10nF (103)
• Voltage Rating: 6.3V (0J)
• Temperature Characteristic: X5R
• Case Size: 0402 (0.4mm x 0.2mm)
• Termination: Nickel barrier with tin plating
• RoHS compliant

Benefits

• Stable capacitance over temperature and voltage
• Small size for high-density mounting
• High reliability and long life
• Low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance)
• Suitable for reflow soldering

Additional Details

The X5R temperature characteristic indicates that the capacitance changes within ±15% over the operating temperature range of -55°C to +85°C. The 0402 case size makes this capacitor ideal for space-constrained applications. The nickel barrier termination provides excellent solderability and prevents leaching. The C0402X5R0J103KT00NN is commonly used in mobile phones, tablets, and other portable electronic devices. Its small size and stable performance make it a versatile component for a wide range of applications.
