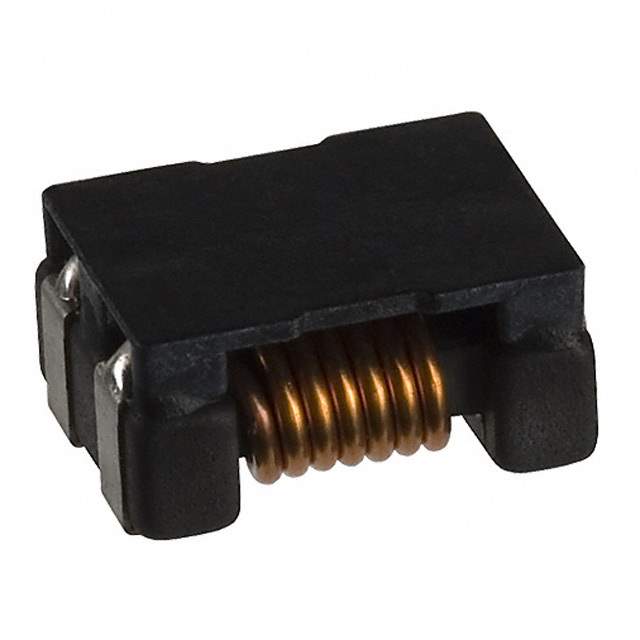

The ACM9070-701 is a common mode choke manufactured by TDK Corporation, designed to suppress common mode noise in high-speed data lines. It's commonly used in applications where electromagnetic interference (EMI) needs to be minimized to ensure signal integrity and compliance with regulatory standards.

Applications:

• USB 2.0/3.0 Lines: Employed to filter common mode noise in USB interfaces, ensuring reliable data transmission.
• HDMI Interfaces: Used in HDMI connections to suppress noise and improve video and audio quality.
• Ethernet Interfaces: Applied in Ethernet ports to reduce interference and maintain network performance.
• LVDS Circuits: Utilized in Low Voltage Differential Signaling (LVDS) applications for noise filtering.
• DisplayPort Interfaces: Implemented in DisplayPort connections to minimize noise and ensure high-quality display signals.

Features:

• High Common Mode Impedance: Offers high impedance to common mode noise, effectively attenuating it.
• Low Differential Mode Impedance: Provides minimal impedance to differential mode signals, preserving signal integrity.
• Compact Size: Designed with a small footprint for easy integration into space-constrained circuit boards.
• High Rated Current: Capable of handling a significant amount of current without saturation or performance degradation.
• Surface Mount Technology (SMT): Facilitates automated assembly and reduces manufacturing costs.

Benefits:

• Reduced EMI Emissions: Minimizes electromagnetic interference, ensuring compliance with EMC regulations.
• Improved Signal Quality: Preserves signal integrity by suppressing common mode noise.
• Enhanced System Reliability: Protects sensitive electronic components from noise-induced malfunctions.
• Simplified PCB Design: Reduces the need for complex filtering circuits, simplifying board layout.
• Cost-Effective Solution: Provides a cost-effective means of suppressing common mode noise.

Additional Details:

The ACM9070-701 typically features a ferrite core and is available in a surface mount package. Key specifications include a common mode impedance of 700 ohms at 100 MHz, a rated current of 0.5 Ampere, and a DC resistance of approximately 0.2 ohms. It is crucial to consult the datasheet for precise electrical characteristics, mechanical dimensions, and soldering guidelines. For optimal performance, the choke should be placed as close as possible to the noise source or the connector. The selection of the common mode choke depends on noise frequency and intensity.
