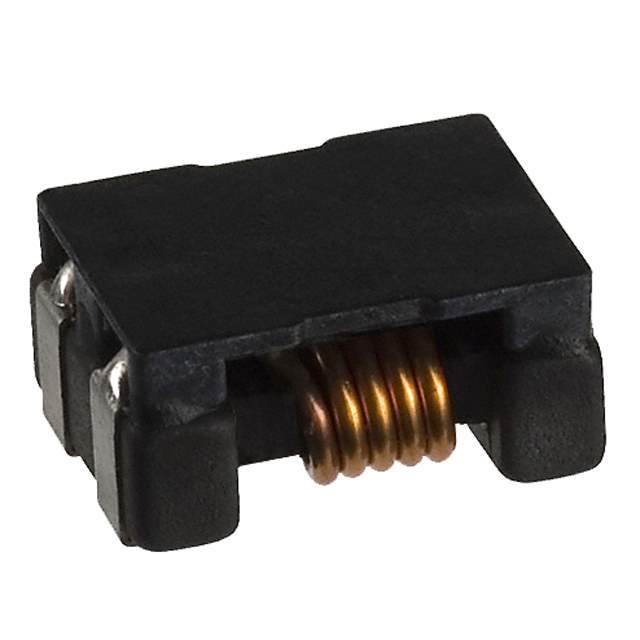

ACM7060-701-2PL-TL Real Image
Same model may have multiple batches, images only for reference.

ACM7060-701-2PL-TL

Part No ACM7060-701-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 4A 2LN 700 OHM SMD
Datasheet
ACM7060-701-2PL-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 15 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.138" (3.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 091463-ACM7060-701-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian ACM7060-701-2PL-TL CAD Model

Description

ACM7060-701-2PL-TL Wide Range Inductor

Engineered for versatility, the ACM7060-701-2PL-TL offers a wide inductance range for adapting to various electrical requirements. It's compact and durable, suitable for diverse applications.

  • Applications:
    • Industrial control units
    • Telecommunications devices
    • Portable electronics
  • Features & Benefits:
    • Wide inductance range
    • Compact form factor
    • Stable performance under varying loads
    • RoHS compliant
  • Additional Details: This component is optimized for thermal management, ensuring reliability in high-power applications.
