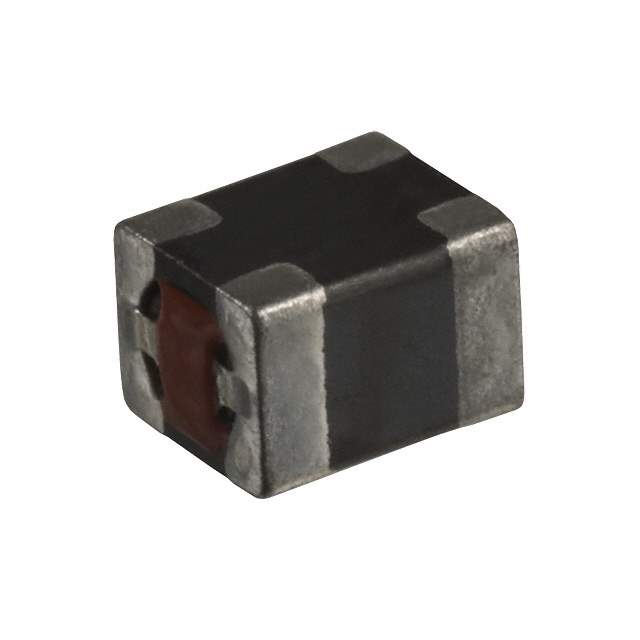

ACM3225-800-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM3225-800-2P-T001

Part No ACM3225-800-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 400MA 2LN 80 OHM SMD
Datasheet
ACM3225-800-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 150 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1210 (3225 Metric) (4 Leads)
Win Source Part Number 133326-ACM3225-800-2P-T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM3225-800-2P-T001 CAD Model

Description

Product Overview

The ACM3225-800-2P-T001 is a high-performance, multilayer chip inductor designed for a wide range of applications. Its compact size and superior quality make it an ideal choice for modern electronic circuits.

Key Features and Benefits

  • Compact Size: Optimized dimensions for space-constrained designs.
  • High-Performance: Delivers optimal inductance with low resistance.
  • Reliable Construction: Built for durability and reliable performance under various conditions.

Applications

  • Smartphones
  • Wearable Technology
  • Automotive Electronics
  • RF Modules
  • Communication Devices
