Same model may have multiple batches, images only for reference.

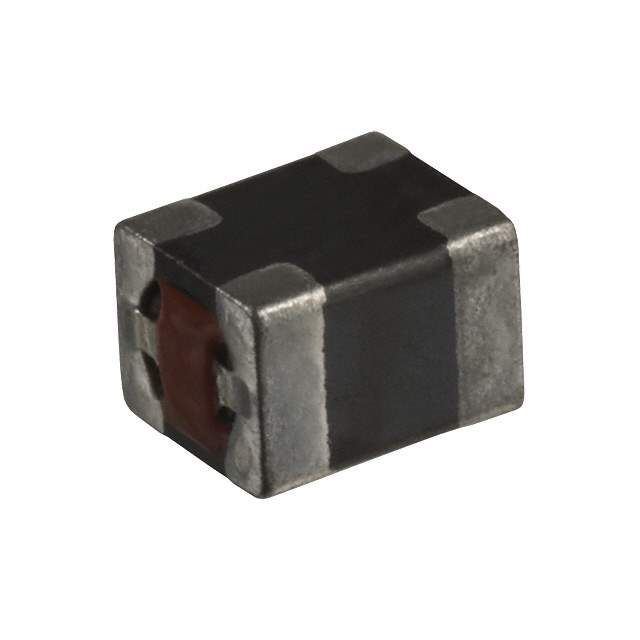

ACM3225-161-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM3225-161-2P-T001

Part No ACM3225-161-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 350MA 2LN 160 OHM SMD
Datasheet
ACM3225-161-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 160 Ohm @ 100MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 200 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1210 (3225 Metric) (4 Leads)
Win Source Part Number 128522-ACM3225-161-2P-T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM3225-161-2P-T001 CAD Model

Description

ACM3225-161-2P-T001

The ACM3225-161-2P-T001 is tailored for high-demand applications that require both reliability and efficiency in electronic designs.

Applications

  • High-Frequency Devices
  • Military Electronics
  • Automated Test Equipment
  • Consumer Appliances

Features and Benefits

  • Exceptional frequency stability
  • Compact form factor
  • High efficiency with low power consumption
  • Built to meet rigorous industry standards

Additional Details

It is an essential component for high-precision applications, offering dependable performance and meeting high industry standards from the very first use.
