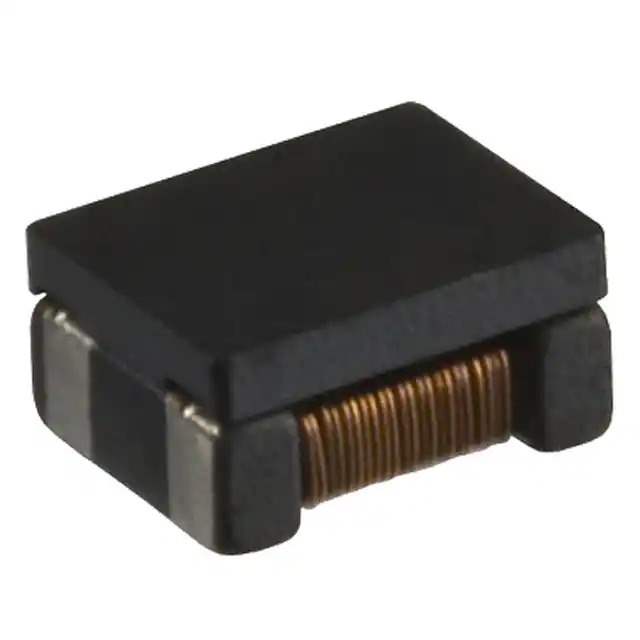

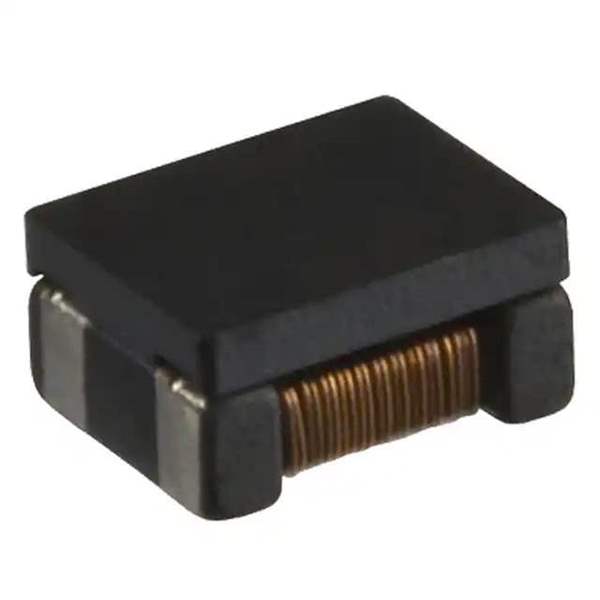

ACM2520-601-3P-T002 Real Image
Same model may have multiple batches, images only for reference.

ACM2520-601-3P-T002

Part No ACM2520-601-3P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 3LN 600 OHM SMD / 3 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz DCR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACM
Package Tape & Reel
Product Status Not For New Designs
Filter Type Signal Line
Number of Lines 3
Impedance @ Frequency 600 Ohms @ 100 MHz
Voltage Rating - DC 20V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max) 0.051" (1.30mm)
Package / Case 1008 (2520 Metric), 6 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 859261-ACM2520-601-3P-T002
Ultra Librarian 3D Model Ultra Librarian ACM2520-601-3P-T002 CAD Model

Description

The 859261-ACM2520-601-3P-T002 is a common mode choke from TDK Corporation.

  • Series: ACM
  • Application: Signal Line Filtering
  • Voltage Rating: 20V
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Standard Package Quantity: 2,000 pcs
  • Height: 0.051" (1.30mm)
  • Lines: Three
  • Impedance: 600 Ohms @ 100 MHz
  • Operating Temperature: -40°C to 85°C
