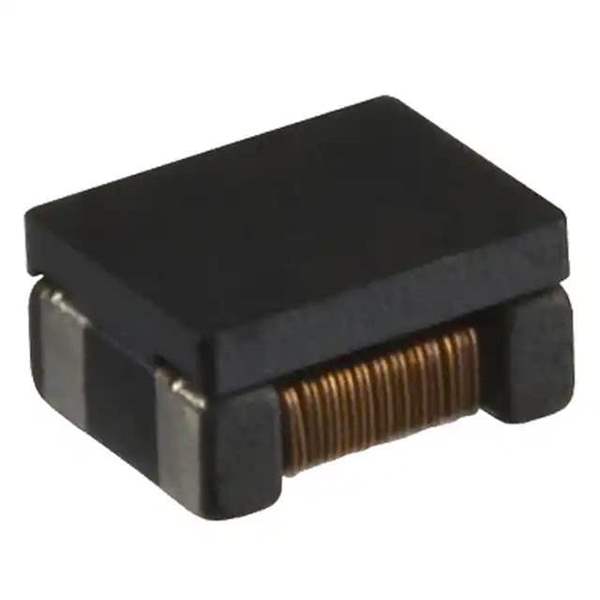

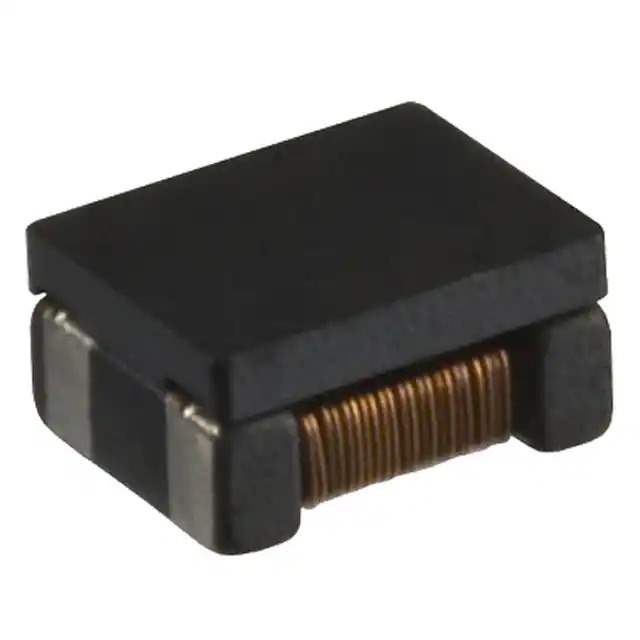

ACM2012-681-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM2012-681-2P-T001

Part No ACM2012-681-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 200MA 2LN 680OHM SMD AECQ200 / 2 Line Common Mode Choke Surface Mount 680 Ohms @ 100 MHz 200mA DCR 1.3Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACM
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 680 Ohms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.3Ohm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 859259-ACM2012-681-2P-T001
Ultra Librarian 3D Model Ultra Librarian ACM2012-681-2P-T001 CAD Model

Description

The ACM2012-681-2P-T001 is a common mode choke designed for filtering signal lines in electronic circuits.

  • Voltage Rating: 50V
  • Maximum Current Rating: 200mA
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.051" (1.30mm)
  • Impedance: 680 Ohms @ a frequency of 100 MHz
  • DC Resistance: 1.3 Ohm
  • Mounting Type: Surface Mountable
  • Package: Horizontal, 4 PC pad
  • Operating Temperature: -40°C to 105°C
  • Compliance: AEC-Q200 standards
