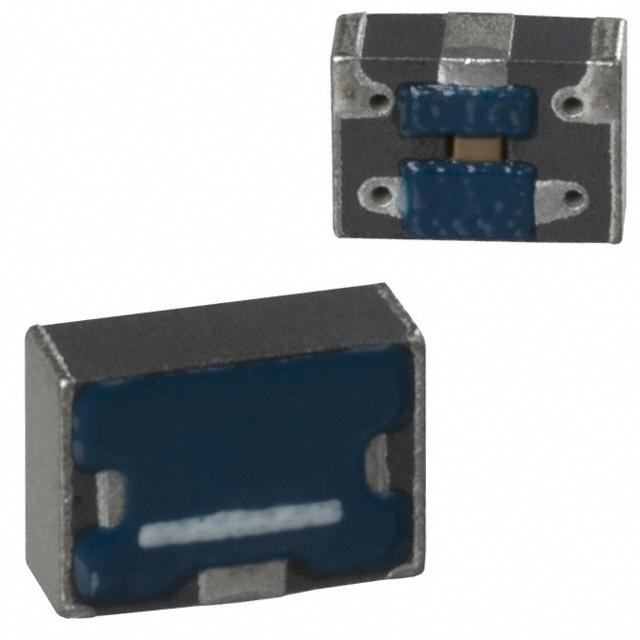

ACH4518-103-TD01

Part No ACH4518-103-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 15MHz to 75MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007830-ACH4518-103-TD01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACH4518-103-TD01 CAD Model

Description

ACH4518-103-TD01 Description

The ACH4518-103-TD01 is a trusted component known for its dependable performance and integration flexibility. It caters to a multitude of applications requiring stability and consistency.

  • Application/Projects:
    • Industrial machinery
    • Networking equipment
    • Security systems
    • Wearable technology
  • Features and Benefits:
    • High stability and precision
    • Adaptable design for varied uses
    • Low energy consumption
    • Reliable performance in critical applications
  • Additional Details:
    • Compatible with a wide range of technologies
    • Simple and straightforward deployment
