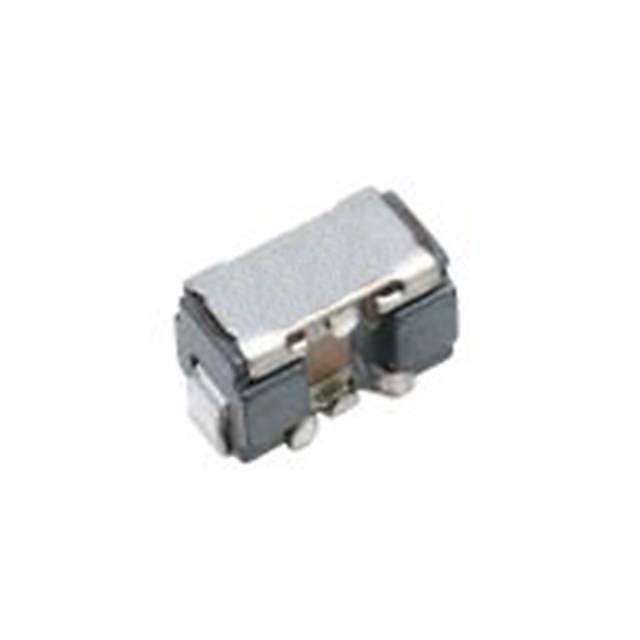

ACH32C-470-T001 Real Image
Same model may have multiple batches, images only for reference.

ACH32C-470-T001

Part No ACH32C-470-T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 47PF SMD
Datasheet
ACH32C-470-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value -15dB @ 650MHz to 2.5GHz
Resistance - Channel (Ohms) 0.002
Current 6A
Values C = 47pF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.091" (2.30mm)
Win Source Part Number 1011598-ACH32C-470-T001
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ACH32C-470-T001 CAD Model

Description

The ACH32C-470-T001 is a low-pass filter manufactured by TDK Corporation.

  • Packaging: Reel, 2k pcs per package
  • Filter Order: 3rd
  • Attenuation: -15dB @ 650MHz to 2.5GHz
