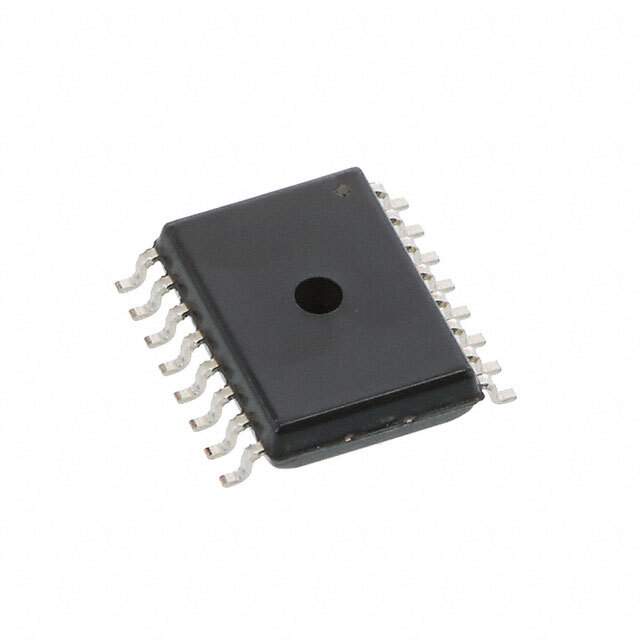

MLX90821LXG-DBA-005-RE Real Image
Same model may have multiple batches, images only for reference.

MLX90821LXG-DBA-005-RE

Part No MLX90821LXG-DBA-005-RE
Manufacturer Melexis Technologies NV
Catalog Pressure Sensors, Transducers
Description IC SENSOR PRESSURE ANALOG 16SOIC / Pressure Sensor -0.72PSI ~ 0.72PSI (-4.98kPa ~ 4.98kPa) Differential 0.5 V ~ 4.5 V 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Melexis Technologies NV
Packaging Reel - TR
Applications Board Mount
Pressure Type Differential
Operating Pressure -0.72PSI ~ 0.72PSI (-4.98kPa ~ 4.98kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 150°C
Case / Package 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package 16-SOIC
Base Product Number MLX90821
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 413-MLX90821LXG-DBA-005-RETR
Standard Package 1,500
Win Source Part Number 1336613-MLX90821LXG-DBA-005-RE
Ultra Librarian 3D Model Ultra Librarian MLX90821LXG-DBA-005-RE CAD Model

Description

The MLX90821LXG-DBA-005-RE is a differential pressure sensor manufactured by Melexis Technologies NV.

  • Mounting Type: Board Mount
  • Features: Amplified Output, Temperature Compensation
  • Output Type: Analog Voltage
  • Output Range: 0.5V to 4.5V
  • Operating Pressure: -0.72PSI to 0.72PSI (-4.98kPa to 4.98kPa)
  • Package: 16-SOIC with Exposed Pad
  • Voltage Supply: 4.5V to 5.5V
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
