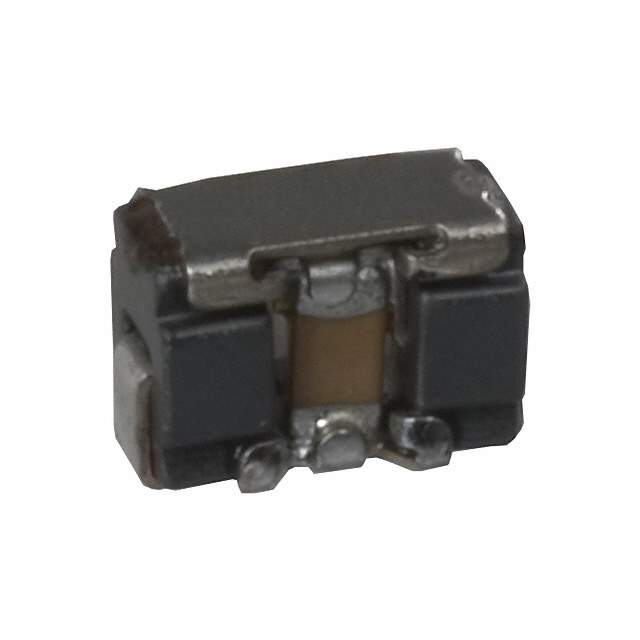

ACH32C-331-T001

Part No ACH32C-331-T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 330PF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value -20dB @ 200MHz to 800MHz
Resistance - Channel (Ohms) 0.002
Current 6A
Values C = 330pF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.091" (2.30mm)
Win Source Part Number 039071-ACH32C-331-T001
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ACH32C-331-T001 CAD Model

Description

ACH32C-331-T001 Description

The ACH32C-331-T001 is recognized for its high-efficiency rate and compact structure, which makes it ideal for use in complex electronic circuits. Its performance metrics are tailored to suit modern electronic demands, ensuring optimal results every time.

  • Features and Benefits:
  • High-efficiency rate for maximum energy utilization
  • Compact design for easy installation
  • Wide operational voltage range
  • Low thermal resistance
  • Applications and Projects:
  • Smart grid applications
  • Internet of Things (IoT) devices
  • Power management systems
  • Digital entertainment solutions

Additional Details: The ACH32C-331-T001 delivers remarkable thermal performance, ensuring that your devices run efficiently and remain protected from potential heat-related issues.
