Same model may have multiple batches, images only for reference.

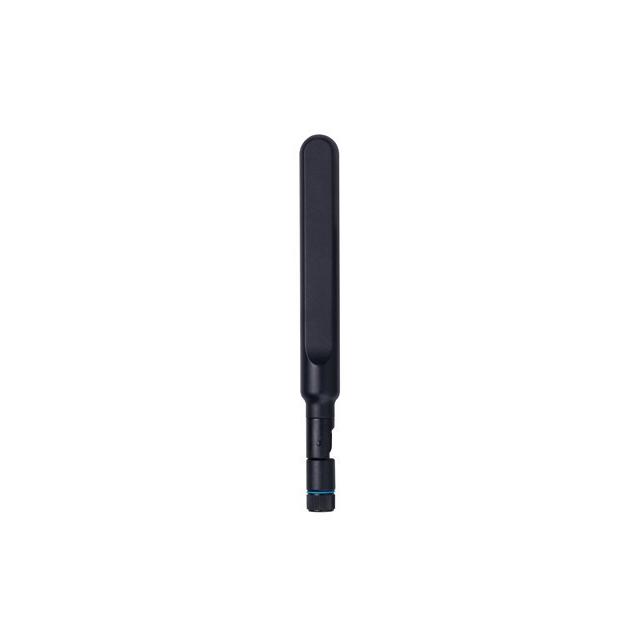

TG.10R.A.0113 Real Image
Same model may have multiple batches, images only for reference.

TG.10R.A.0113

Part No TG.10R.A.0113
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 750MHZ/892MHZ WHIP TILT / 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.4GHz CDMA, GPS, GSM, LTE, UMTS, WLAN Whip, Tilt RF Antenna 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi SMA Male Connector Mount
Datasheet
TG.10R.A.0113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Triton
Package Bulk
RF Family/Standard Cellular, Navigation, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.4GHz
Frequency Range 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz
Antenna Type Whip, Tilt
Number of Bands 5
Gain -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi
Power - Max 50 W
Termination SMA Male
Mounting Type Connector Mount
Height (Max) 6.614" (168.00mm)
Applications CDMA, GPS, GSM, LTE, UMTS, WLAN
Base Product Number TG.10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Other Names 2266-TG.10R.A.0113,931-1275
Standard Package 50
Win Source Part Number 1152191-TG.10R.A.0113
Ultra Librarian 3D Model Ultra Librarian TG.10R.A.0113 CAD Model

Description

The Taoglas Limited 1152191-TG.10R.A.0113 is an RF antenna that is designed to deliver excellent performance and reliability.

  • Series: Triton
  • Applications: CDMA, GPS, GSM, LTE, UMTS, WLAN
  • Termination: SMA Male
  • Packaging: Bulk
  • Ingress Protection: Not Specified
  • Frequency Range: 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz
  • Height: 6.614" (168.00mm)
  • Antenna Type: Whip and Tilt
  • Number of Bands: 5
  • Gain: -0.5dBi, -0.5dBi, -0.5dBi, 2dBi, 3dBi
