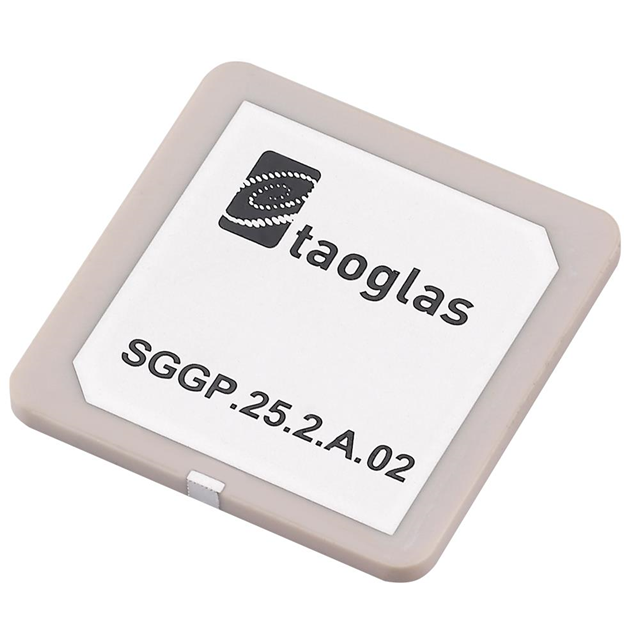

SGGP.25.2.A.02 Real Image
Same model may have multiple batches, images only for reference.

SGGP.25.2.A.02

Part No SGGP.25.2.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575/1.602GHZ CER PATCH / 1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 3.3dBi Solder Surface Mount
Datasheet
SGGP.25.2.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.602GHz
Antenna Type Ceramic Patch
Number of Bands 2
Return Loss -10dB
Gain 3.3dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Applications GLONASS, GPS
Base Product Number SGGP.25
Other Names 931-1450-2,931-1450-1,931-1450-6
Standard Package 200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Win Source Part Number 1236184-SGGP.25.2.A.02
Ultra Librarian 3D Model Ultra Librarian SGGP.25.2.A.02 CAD Model

Description

The SGGP.25.2.A.02 is an RF antenna manufactured by Taoglas Limited.

  • Antenna Type: ceramic patch
  • Applications: GLONASS and GPS
  • Package Style: tape and reel
  • Standard Package: 200
  • Frequency Range: 1.575GHz and 1.602GHz
  • Frequency Group: UHF (1GHz ~ 2GHz)
  • Gain: 3.3dBi
  • Return Loss: -10dB
  • Navigation RF family/standard: Navigation RF
  • ECCN: 7A994
  • MSL level: 3 (168 hours)
  • REACH: unaffected
  • Other names: 931-1450-2, 931-1450-1, 931-1450-6, and SGGP.25
