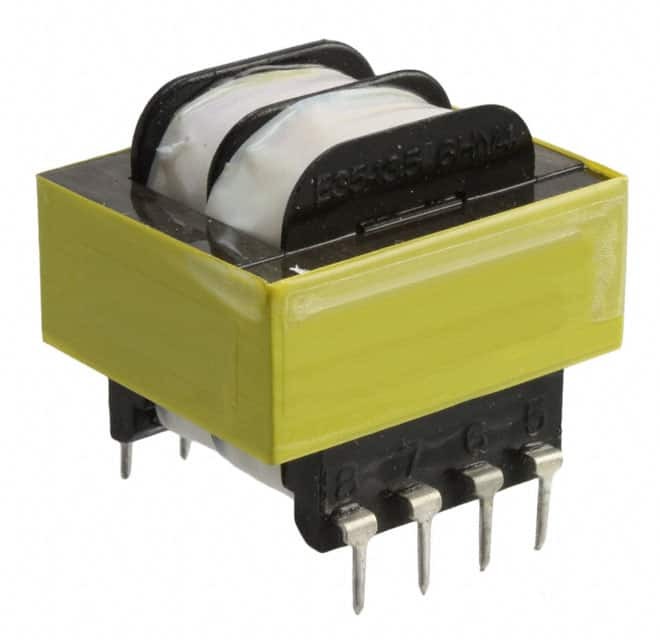

3FD-336 Tamura
Same model may have multiple batches, images only for reference.

3FD-336

Part No 3FD-336
Manufacturer Tamura
Catalog Power Transformers
Description PWR XFMR LAMINATED 2.4VA TH
Datasheet
3FD-336 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Tamura
Series 3FD-3xx
Package Tube
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 18V, Series 36V
Current - Output (Max) Parallel 130mA, Series 65mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 2.4VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 35.56mm L x 31.00mm W
Height - Seated (Max) 32.10mm
Voltage - Isolation 2500Vrms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 1316241-3FD-336
Ultra Librarian 3D Model Ultra Librarian 3FD-336 CAD Model

Description

The Tamura 3FD-336 is a power transformer that belongs to the 3FD-3xx series. The device has a laminated core and is designed for through-hole mounting.

  • Maximum Power Rating: 2.4VA
  • Isolation Voltage: 2500Vrms
  • Primary Windings: Can be connected to either 115V or 230V
  • Secondary Windings: Can deliver output voltages of 18V or 36V
  • Package: Tube
  • Dimension: 35.56mm L x 31.00mm W
  • Manufacturer: Tamura
The Tamura 3FD-336 transformer is available for purchase from Win Source.
