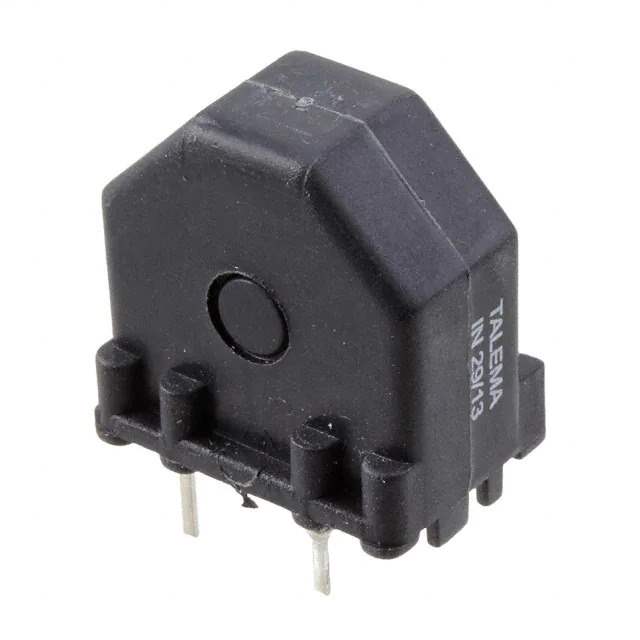

DPV-1.0-330 Real Image
Same model may have multiple batches, images only for reference.

DPV-1.0-330

Part No DPV-1.0-330
Manufacturer Talema Group LLC
Catalog Fixed Inductors
Description FIXED IND 330UH 1A 193 MOHM TH / 330 μH Unshielded Toroidal Inductor 1 A 193mOhm Max Radial, Vertical
Datasheet
DPV-1.0-330 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Talema Group LLC
Series DP
Package Tray
Product Status Active
Type Toroidal
Inductance 330 µH
Current Rating (Amps) 1 A
Shielding Unshielded
DC Resistance (DCR) 193mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical
Size / Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height - Seated (Max) 0.984" (25.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 902376-DPV-1.0-330
Ultra Librarian 3D Model Ultra Librarian DPV-1.0-330 CAD Model

Description

The DP Series Toroidal Inductor is a versatile component for various electronic applications.

  • Size: 0.906" L x 0.610" W (23.00mm x 15.50mm)
  • Height: 0.984" (25.00mm)
  • Inductance: 330 µH
  • DC Resistance (DCR): 193mOhm Max
  • Shielding: Unshielded
  • Mounting Type: Through-hole
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1A
