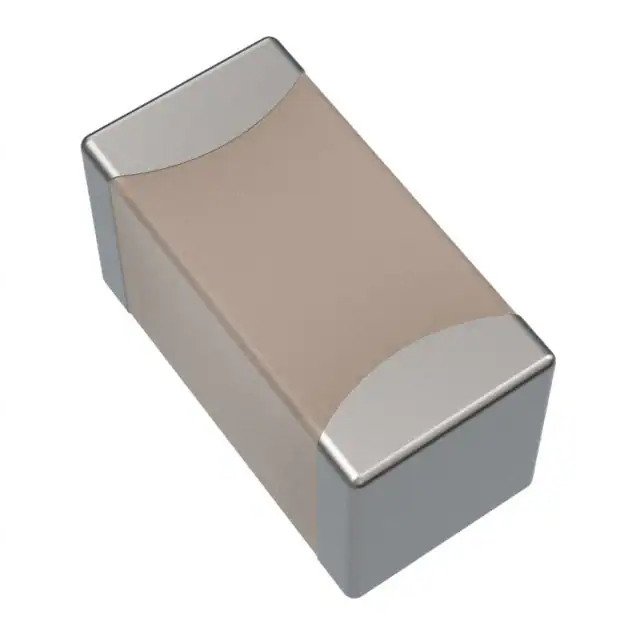

Same model may have multiple batches, images only for reference.
TMF316B7224MLHT Taiyo Yuden
Same model may have multiple batches, images only for reference.

TMF316B7224MLHT

Part No TMF316B7224MLHT
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 0.22UF 25V X7R 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel
Product Status Not For New Designs
Capacitance 0.22 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive, SMPS Filtering
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) -
Thickness (Max) 0.071" (1.80mm)
Lead Spacing -
Lead Style -
Base Product Number TMF316B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1380093-TMF316B7224MLHT
Ultra Librarian 3D Model Ultra Librarian TMF316B7224MLHT CAD Model

Description

The Taiyo Yuden 1380093-TMF316B7224MLHT is a ceramic capacitor from the M series.

  • Series: M
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Capacitance: 0.22 μF
  • Voltage Rating: 25V
  • Application: Automotive, SMPS Filtering
  • Temperature Range: -55°C ~ 125°C
  • Tolerance: ±20%
  • Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Temperature Coefficient: X7R
