Same model may have multiple batches, images only for reference.

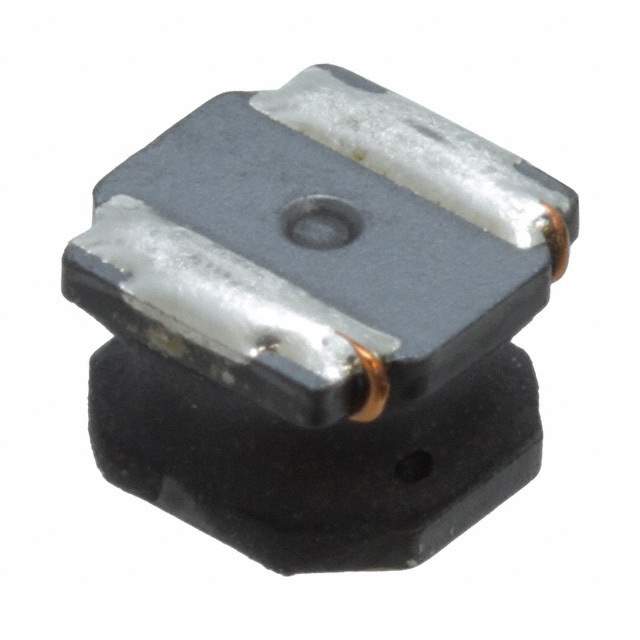

NRS6045T3R0NMGKV Real Image
Same model may have multiple batches, images only for reference.

NRS6045T3R0NMGKV

Part No NRS6045T3R0NMGKV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 3UH 3.3A 31.2 MOHM SMD / 3 µH Shielded Drum Core, Wirewound Inductor 3.3 A 31.2mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 5.6A
Shielding Shielded
DC Resistance (DCR) 31.2mOhm Max
Frequency - Self Resonant 45MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number LM NRS6045T 3R0NMGKV
Standard Package 1,500
Win Source Part Number 1327635-NRS6045T3R0NMGKV
Ultra Librarian 3D Model Ultra Librarian NRS6045T3R0NMGKV CAD Model

Description

The 1327635-NRS6045T3R0NMGKV is an inductor from Taiyo Yuden that belongs to the fixed inductor category.

  • Core Type: Drum Core
  • Inductor Type: Wirewound
  • Shielding: Shielded
  • Inductance: 3 µH
  • Tolerance: ±30%
  • Height: 0.177" (4.50mm)
  • Frequency Range: 45MHz
  • DC Resistance (DCR): 31.2mOhm Max
  • Temperature Range: -40°C ~ 125°C
