Same model may have multiple batches, images only for reference.

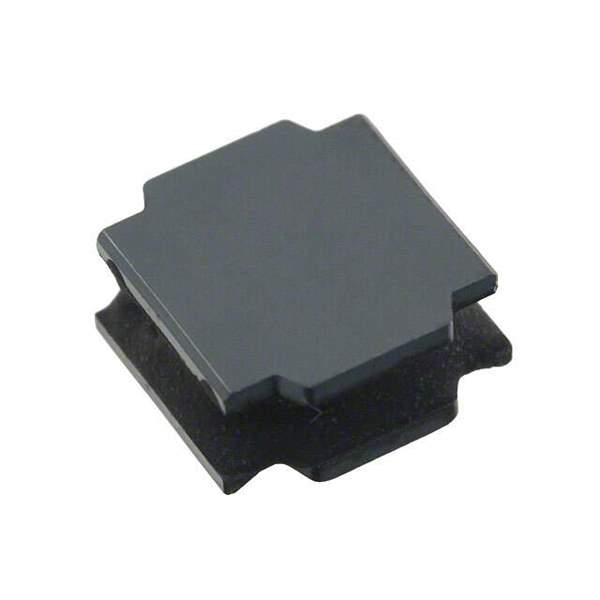

NRS6012T470MMGJV Real Image
Same model may have multiple batches, images only for reference.

NRS6012T470MMGJV

Part No NRS6012T470MMGJV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 47UH 460MA 1.158 OHM / Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.46A 1.158Ohm DCR 2424 Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 460mA
Current - Saturation 520mA
Shielding Shielded
DC Resistance (DCR) 1.158 Ohm Max
Frequency - Self Resonant 6MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 790803-NRS6012T470MMGJV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name NR
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian NRS6012T470MMGJV CAD Model

Description

The Taiyo Yuden NRS6012T470MMGJV is a shielded wirewound inductor from the NRS series.

  • Inductance: 47μH
  • Current Rating: 460mA
  • Tolerance: ±20%
  • Package: Nonstandard
  • Mounting Type: SMD
  • DC Resistance (DCR): 1.158 Ohm Max
  • AEC-Q200 Compliant: Yes
  • Estimated EOL Date: 2029
