Same model may have multiple batches, images only for reference.

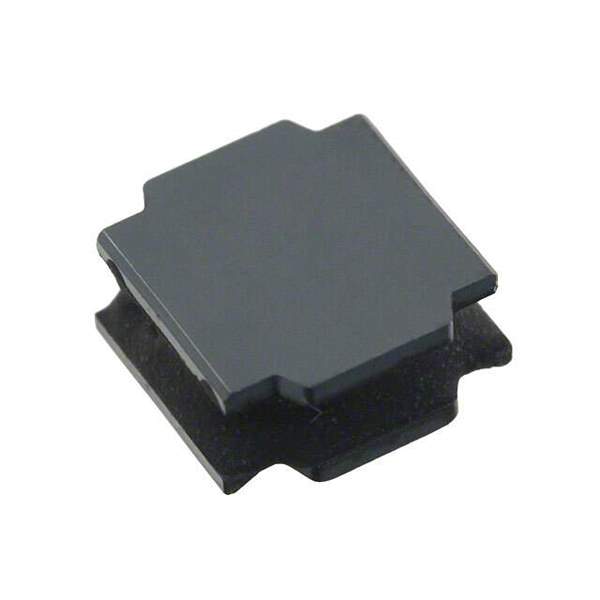

NRS6012T101MMGJV Real Image
Same model may have multiple batches, images only for reference.

NRS6012T101MMGJV

Part No NRS6012T101MMGJV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 100UH 320MA 2.004 OHM / 100 µH Shielded Drum Core, Wirewound Inductor 320 mA 2.004Ohm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 320 mA
Current - Saturation (Isat) 350mA
Shielding Shielded
DC Resistance (DCR) 2.004Ohm Max
Frequency - Self Resonant 1MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 2266-NRS6012T101MMGJV,587-3617-1,587-3617-2,LM NRS6012T 101MMGJV
Standard Package 1,000
Win Source Part Number 1327636-NRS6012T101MMGJV
Ultra Librarian 3D Model Ultra Librarian NRS6012T101MMGJV CAD Model

Description

The NRS6012T101MMGJV is a fixed inductor manufactured by Taiyo Yuden.

  • Inductance: 100 µH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C ~ 125°C
