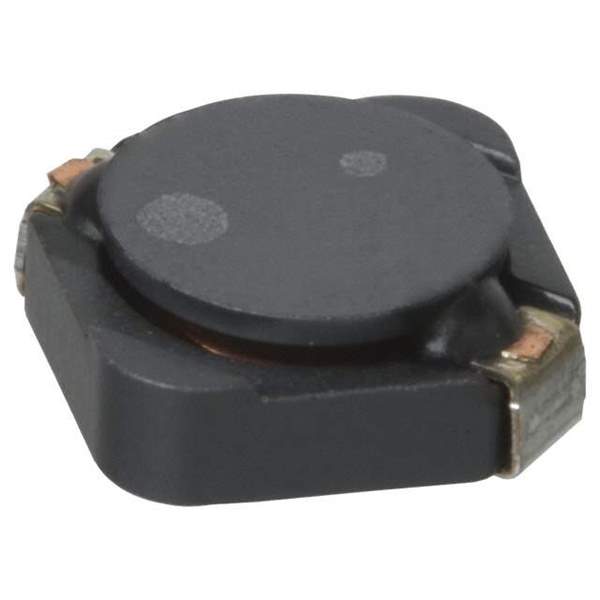

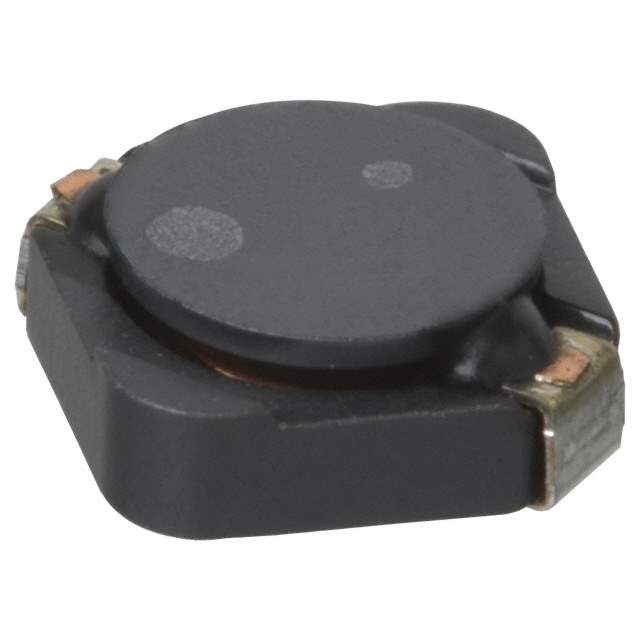

NP04SB220M Real Image
Same model may have multiple batches, images only for reference.

NP04SB220M

Part No NP04SB220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 1.2A 150 MOHM SMD
Datasheet
NP04SB220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.2A
Current - Saturation 510mA
DC Resistance (DCR) 150 mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -25°C to 105°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 099005-NP04SB220M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NP04SB220M CAD Model

Description

The Taiyo Yuden NP04SB220M is a surface mount inductor component.

  • Inductance: 22μH
  • Current Rating: 1.2A
  • Tolerance: ±20%
  • DC Resistance (DCR): 150 mOhm Max
  • Frequency of Self-Resonant: 12MHz
  • Status: Obsolete (EOL)
  • Temperature Range: -25°C to 105°C
  • Packaging: Reel
