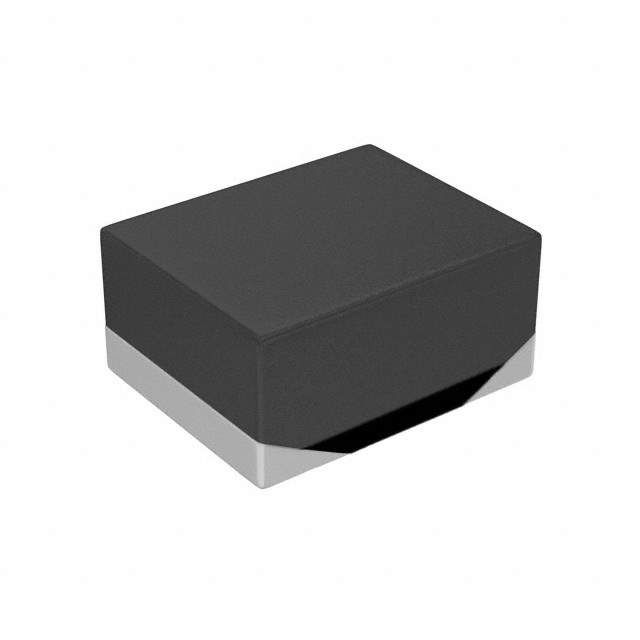

The LQMAMK2520T1R0M is a multilayer chip inductor manufactured by Taiyo Yuden. It is designed for use in various high-frequency applications, especially those requiring small size and high Q characteristics. This inductor is part of the LQMAMK series, which is known for its excellent performance in impedance matching and filtering circuits.

Applications

• RF circuits in smartphones and tablets
• Wireless LAN modules (Wi-Fi, Bluetooth)
• High-frequency impedance matching
• RF filters and baluns
• Tuners and VCOs (Voltage Controlled Oscillators)

Features

• Compact Size: 2.5mm x 2.0mm footprint, ideal for space-constrained applications.
• High Q Value: Provides low losses and improved efficiency in RF circuits.
• Tight Tolerance: Ensures consistent performance and simplifies circuit tuning.
• Excellent SRF (Self-Resonant Frequency): Allows for operation at high frequencies.
• RoHS Compliant: Lead-free construction for environmental compliance.

Benefits

• Enhanced RF Performance: High Q value minimizes signal loss and improves signal integrity.
• Miniaturization: Small size allows for denser circuit designs.
• Stable Operation: Excellent temperature stability ensures consistent performance across varying conditions.
• Easy Integration: Suitable for reflow soldering, facilitating automated assembly.
• Improved Battery Life: Higher efficiency leads to reduced power consumption in wireless devices.

Additional Details

The LQMAMK2520T1R0M inductor has an inductance value of 1.0 µH (microhenry). It utilizes a multilayer construction to achieve high Q and stable electrical characteristics. The inductor is designed to operate over a wide temperature range, typically from -55°C to +125°C. Its high self-resonant frequency allows it to be used effectively in high-frequency circuits. The part is commonly used in impedance matching networks to optimize power transfer and reduce signal reflections. It's supplied in tape and reel packaging for automated placement and soldering. This component is crucial for ensuring efficient and reliable performance in modern wireless communication devices.
