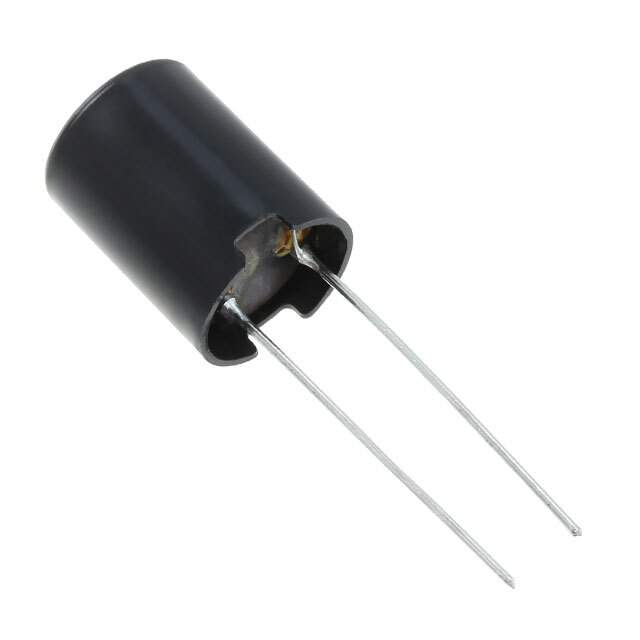

LHL08NB220K Real Image
Same model may have multiple batches, images only for reference.

LHL08NB220K

Part No LHL08NB220K
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 1.8A 68 MOHM TH / 22 µH Unshielded Inductor 1.8 A 68mOhm Max Radial, Vertical Cylinder
Datasheet
LHL08NB220K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series LH, L Type
Package Bulk
Product Status Obsolete
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 1.8 A
Shielding Unshielded
DC Resistance (DCR) 68mOhm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.374" (9.50mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Other Names LH LH L 08NB220K
Standard Package 100
Win Source Part Number 1069695-LHL08NB220K
Ultra Librarian 3D Model Ultra Librarian LHL08NB220K CAD Model

Description

The LH series inductors are fixed inductors that are designed to be used in various electronic devices.

  • Type: L Type LH series inductor
  • Inductance: 22 µH
  • Tolerance: ±10%
  • Material: Ferrite material
  • Q @ Freq: 50 @ 2.52MHz
  • Shielding: Unshielded
  • DC Resistance (DCR): 68mOhm Max
  • Height: Seated @ a maximum of 0.374" (9.50mm)
  • Package/Case: Radial, vertical cylinder
  • Mounting Type: Through-hole mounting type which makes it easy to install.
  • Suitability: Suitable for use in various electronic devices that require inductors.
  • Status: Obsolete and is not recommended for new designs.
